Navigation Inline

In this article, we're going to explain how to create inline menus using the Navigation Inline Element that is available in Cornerstone and the Pro Builders. We'll learn the various settings available so you can virtually achieve any look without touching code.

  1. Navigation Setup
  2. Design Settings
  3. Top Links Settings
  4. Dropdown Settings
  5. Sub Links Settings
  6. Customize
  7. Demo
  8. Summary

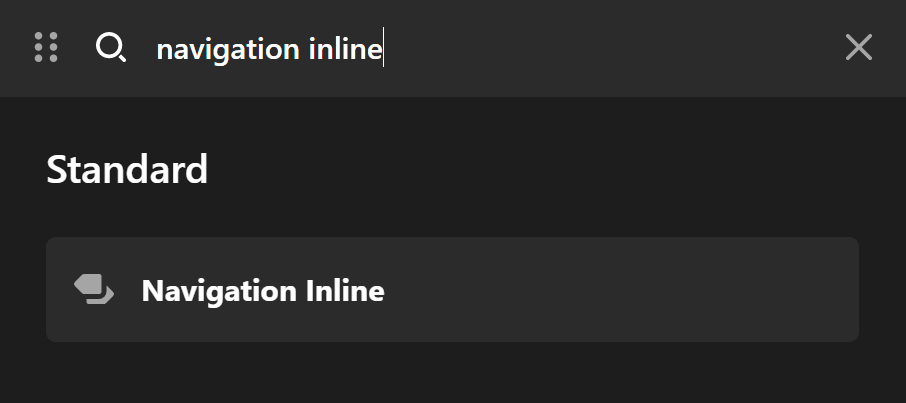

To add this element, search "navigation" and drag "Navigation Inline" on the canvas.

Navigation Inline Element

In this element, as in all V2 elements, you'll be able to configure almost all aspects of it. In this very specific case, you'll be able to configure the overall element, its individual links, it's sub-menu dropdown and the submenu items. Let's discuss all these starting with the element's settings.

Click on the Menu tab.

Navigation Inline Navigation Setup

The first section / field-group that's available to you is the Setup section which includes the following options:

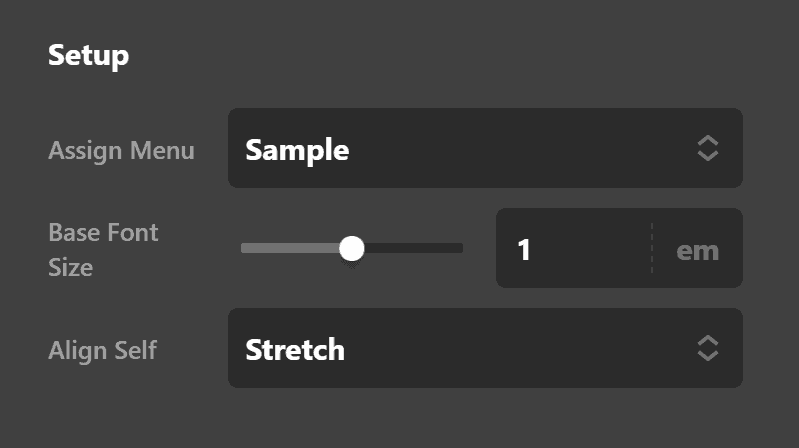

Navigation Inline Setup

Setup

The options within the Setup control consist of:

  • Assign Menu - Pick the menu to be used for the Navigation.
  • Base Font Size - Sets the Base Font size to be used for the Navigation.
  • Align Self - How the menu items align. For example if set Align Self to Stretch the menu links will take up the entire height of the menu. If Align Self is set to Start, the menu link would be aligned to the top leaving room directly under the links.

Design Settings

Now let's discuss the other section/field group available to the Menu tab and that is the Design section. Design includes the following field groups: Margin, Self Flex, Flex Layout and Items Flex.

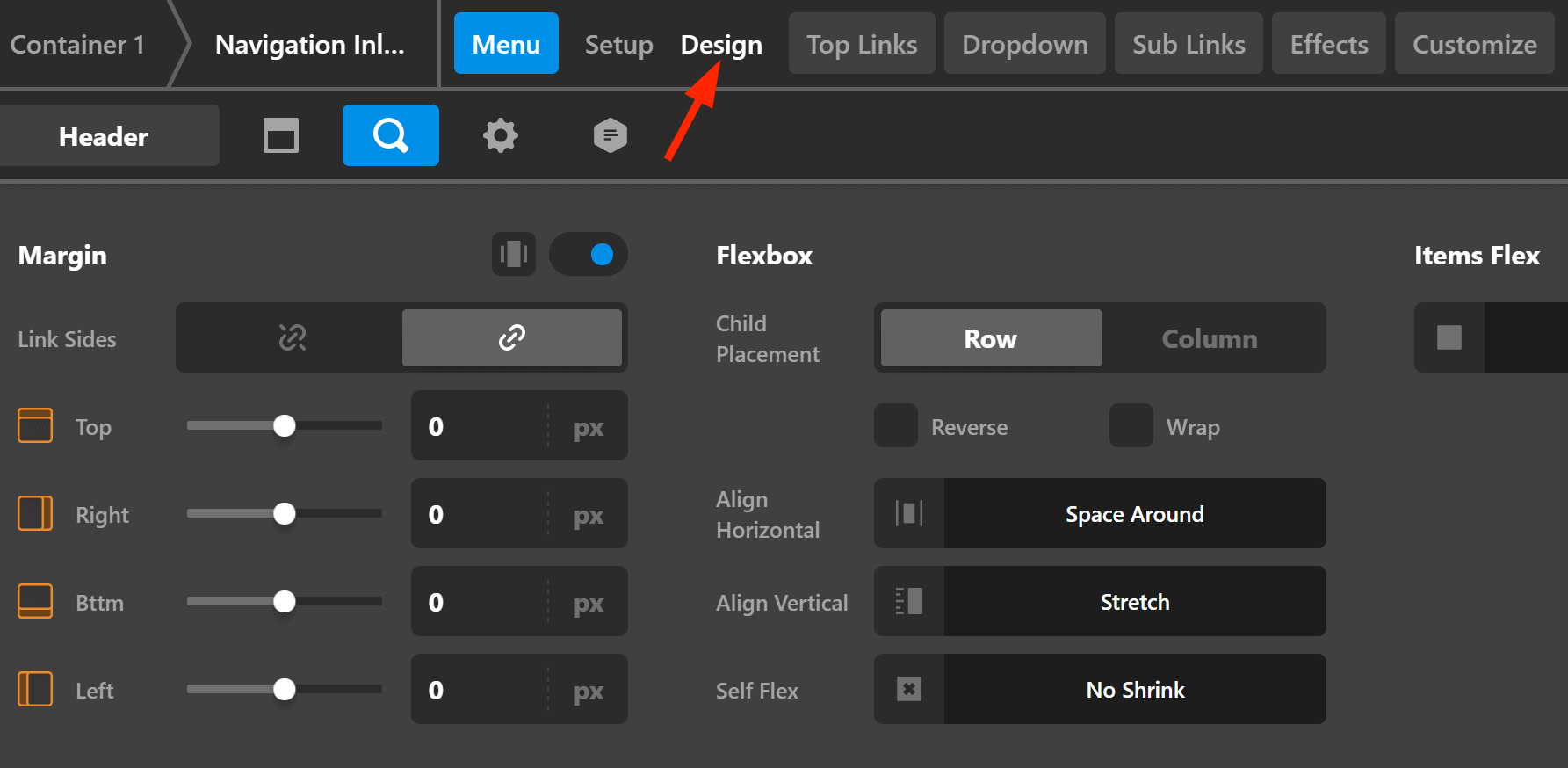

Navigation Inline Design Settings

Margin

The Margin layout controls consist of:

  • Link Sides - Link sides allows you to link up every option within the margin controls so when you change one value all values change. Or you can unlink sides and set each margin option individually.
  • Top - Sets the top margin.
  • Right - Sets the right hand side margin.
  • Bttm - Sets the bottom margin
  • Left - Sets the left hand side margin.

Self Flex

The Self Flex controls consist of:

  • Preset - Preset flex options to help you align your content with ease. Options include Standard, no shrink, fill space, fill space equally.
  • Flex Grow - Defines the ability for a flex item to grow if necessary. To Learn more about Flex Grow take a look at this article.
  • Flex Shrink - Determines how much the flex item will shrink relative to the rest of the flex items in the flex container when there isn't enough space on the row To learn more about Flex Shrink take a look at this article.
  • Flex Basis - specifies the initial size of the flex item, before any available space is distributed according to the flex factors. To learn more about Flex Basis take a look at this article.

Flex Layout

The Flex Layout controls consist of:

  • Layout - Either set to Row or Column
  • Reverse Layout
  • Wrap Children
  • Horizontal
  • Vertical

Items Flex

The Items Flex controls consist of:

  • Preset - Preset flex options to help you align your content with ease. Options include Standard, no shrink, fill space, fill space equally.
  • Flex Grow - Defines the ability for a flex item to grow if necessary. To Learn more about Flex Grow take a look at this article.
  • Flex Shrink - Determines how much the flex item will shrink relative to the rest of the flex items in the flex container when there isn't enough space on the row To learn more about Flex Shrink take a look at this article.
  • Flex Basis - specifies the initial size of the flex item, before any available space is distributed according to the flex factors. To learn more about Flex Basis take a look at this article.

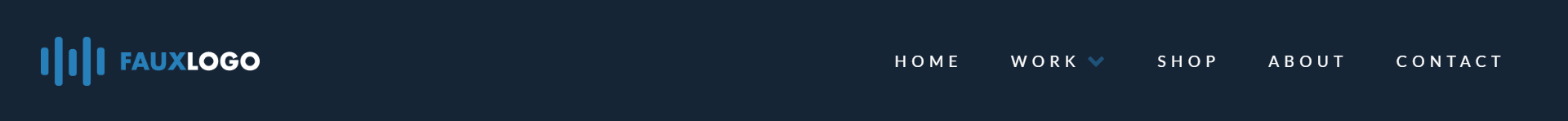

Now let's discuss Top Links. Top links are the main menu items as shown below:

Navigation Inline Top Links

To configure them, click on the Top Links tab.

Navigation Inline Top Links Tab

Below are the field groups available for Top Links:

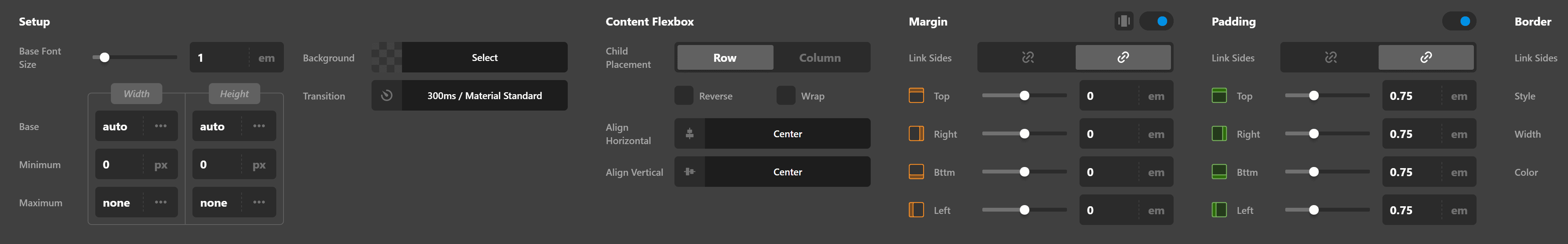

Navigation Inline Top Link Setup

Setup

The setup controls consist of:

  • Base Font Size - The font size used for the top links.
  • Width & Height - The width and height of the links Can be changed to any required value.
  • Min Width & Height - The minimum width and height the links should be.
  • Max Width & Height - The maximum width and height of the links.
  • Background - Offers two options one called Base base is the background color of the links at all times apart from on hover. And the second option called Interaction interaction is the background color of the links on hover and when the links are interacted with.

Content Flex Layout

The Content Flex Layout controls consist of:

  • Layout - Either set to Row or Column
  • Reverse Layout
  • Wrap Children
  • Horizontal
  • Vertical

Margin

The Margin layout controls consist of:

  • Link Sides - Link sides allows you to link up every option within the margin controls so when you change one value all values change. Or you can unlink sides and set each margin option individually.
  • Top - Sets the top margin.
  • Right - Sets the right hand side margin.
  • Bottom - Sets the bottom margin
  • Left - Sets the left hand side margin.

Padding

The Padding controls consist of:

  • Link Sides - Link sides allows you to link up every option within the padding controls so when you change one value all values change. Or you can unlink sides and set each padding option individually.
  • Top - Sets the top margin.
  • Right - Sets the right margin.
  • Bottom - Sets the bottom margin.
  • Left - Sets the Left margin.

Border

The Border controls consist of:

  • Link Sides - Allows you to link up the border control for all sides or unlink sides to control each border side individually.
  • Style - Sets the style of the border such as dashed, dotted etc.
  • Width - Sets the width of the border in pixels by default. Or click on PX to change the value to the units you'd like to use (EM, REM)
  • Color - Sets the color of the border.

Border Radius

The Border Radius controls consist of:

  • Link Sides - Link all sides of the border to control all border radius options at the same time, rather than configuring each value individually. If you unlink sides. You can set the border radius controls individually.
  • Top Left - Set the top left radius of the border.
  • Top Right - Set the top right radius of the border.
  • Bttm Right - Set the bottom right radius of the border.
  • Bttm Left - Set the bottom left radius of the border. Note: You won't see any effect by changing the Border Radius values unless you have already set your Border controls.

Box Shadow

The Box Shadow controls consist of:

  • X-Offset - Set the offset of the border shadow for the X axis.
  • Y-Offset - Set the offset of the border shadow for the Y axis.
  • Blur - Set the blur of the box shadow.
  • Spread & Position - Set the spread and position of the box shadow.
  • Color - Sets the color of the box shadow.

Text Setup

The Text Setup controls consist of:

  • Enable - A simple on or off option set this to Off if you want icon only links
  • Text Overflow - Set text overflow to enable.
  • Primary Text - The main text of the link.
  • Secondary Text - Add secondary text under the primary text. Default is empty (no output).

Text Margin

The Text Margin controls consist of:

  • Link Sides - Link sides allows you to link up every option within the margin controls so when you change one value all values change. Or you can unlink sides and set each margin option individually.
  • Top - Sets the top margin.
  • Right - Sets the right hand side margin.
  • Bttm - Sets the bottom margin
  • Left - Sets the left hand side margin.

Primary Text Format

The Primary Text Setup controls consist of:

  • Font Family - A font selector for the primary text. Default is inherit or you can select a font that's setup within the Font Manager.
  • Font Weight - The font weight for the primary font selected. Available weights depend on the font family selected.
  • Font Size
  • Letter Spacing
  • Line Height

Primary Text Style

The Primary Text Style controls consist of:

  • Font Style - Normal or Italic
  • Text Align - Left, Center, Right, Justify.
  • Text Decoration - Underlined or Strikethrough.
  • Text Transform - Uppercase (force all text to be uppercase), Capitalize (forces the first letter in each word to be a capital), Lowecase (forces all text to be lowercase).
  • Text Color - offers two options. 1: Base, sets the base color of the text. 2: Interaction. Sets the text color when interacted with (on hover) etc.

Primary Text Shadow

The Primary Text Shadow controls consist of:

  • X-Offset - Set the offset of the text shadow for the X axis.
  • Y-Offset - Set the offset of the text shadow for the Y axis.
  • Blur - Set the blur of the text shadow.
  • Spread & Position - Set the spread and position of the text shadow.
  • Color - Sets the color of the text shadow.

Graphic Setup

The Graphic Setup controls consist of:

  • Enable - Enable or Disable the output of a graphic. When Graphic setup is set to On you'll see another option within the Graphic Setup controls and another two set of controls called Graphic Margin and Graphic Icon.
  • Type - Select what type of graphic you want to use either a Icon, Image Or Toggle. Only shows if Enable is set to On.

Graphic Margin

The Graphic Margin controls consist of:

  • Link Sides - Link sides allows you to link up every option within the margin controls so when you change one value all values change. Or you can unlink sides and set each margin option individually.
  • Top - Sets the top margin.
  • Right - Sets the right hand side margin.
  • Bttm - Sets the bottom margin
  • Left - Sets the left hand side margin.

Graphic Icon

The Graphic Icon controls only show if you selected the icon option in the Graphic Setup control and the controls consist of:

  • Font Size & Secondary - If you check the Secondary box you'll see a new option called Secondary Icon.
  • Width & Height - The width and height of the icon
  • Color - offers two options. 1: Base, sets the base color of the icon. 2: Interaction. Sets the icon color when interacted with (on hover) etc. Icons for navigation menus are setup within the WordPress Admin > Appearance > Menus.

Sub Indicator Setup

The Sub Indicator Setup controls consist of:

  • Enable - Either output a sub indicator (on) or don't output a sub indicator (off) the sub indicator is for sub navigation links and shows if you have child links of a parent link.
  • Font Size - The Font Size used for the sub indicator.
  • Width & Height - The Width and Height of the sub indicator defaults to auto.
  • Icon - Icon Picker to select an icon for use as the sub indicator.
  • Color Base - The base color for the sub indicator when not being interacted with.
  • Color Interaction - The color used for the sub indicator when being interacted with (on click, on hover etc).

Sub Indicator Margin

The Sub Indicator Margin layout controls only shows if Sub Indicator Setup is set to On and consist of:

  • Link Sides - Link sides allows you to link up every option within the margin controls so when you change one value all values change. Or you can unlink sides and set each margin option individually.
  • Top - Sets the top margin.
  • Right - Sets the right hand side margin.
  • Bttm - Sets the bottom margin
  • Left - Sets the left hand side margin.

Interactions Setup

The Interactions Setup controls consist of:

  • Text - The text interaction, how the text changes on hover. Available options include: None, Slide Top, Slide Left, Slide Right, Slide Bottom, Scale Up, Scale Down, Flip X, Flip Y.
  • Graphic - The graphic interaction, how the graphic changes on hover. Available options include: None, Scale Up, Scale Down, Flip X, Flip Y.
  • Particles - When you enable Primary Or Secondary particles you'll see new controls and options for the particle setups. This allows you to add particle effects on hover, great to make your menu stand out!

Primary Particle Setup

The Primary Particle Setup controls consist of:

  • Location - Where the Primary Particle effect will display.
  • Placement - Where the Primary Particle effect will display relative to the Toggle.
  • Scale & Delay - Wether to Scale X, Scale Y or Scale all along with the delay in seconds of the effect.
  • Transform starts from - Where the transform of the effect takes place.

Primary Particle Style

The Primary Particle Style controls consist of:

  • Width & Height - The width and height of the particle.
  • Radius & Color - The radius of the particle effect along with it's primary color.
  • Inline CSS - Any inline CSS you wish to apply to the particle effect.

Secondary Particle Setup

The Secondary Particle Setup controls consist of:

  • Location - Where the Secondary Particle effect will display.
  • Placement - Where the Secondary Particle effect will display relative to the Toggle.
  • Scale & Delay - Wether to Scale X, Scale Y or Scale all along with the delay in seconds of the effect.
  • Transform starts from - Where the transform of the effect takes place.

Secondary Particle Style

The Secondary Particle Style controls consist of:

  • Width & Height - The width and height of the particle.
  • Radius & Color - The radius of the particle effect along with it's secondary color (for interactions).
  • Inline CSS - Any inline CSS you wish to apply to the particle effect.

Next is Dropdown. Click on the Dropdown tab.

Navigation Inline Dropdown Settings Tab

What is referred to as "Dropdown" is the container of the sub-menu items like below:

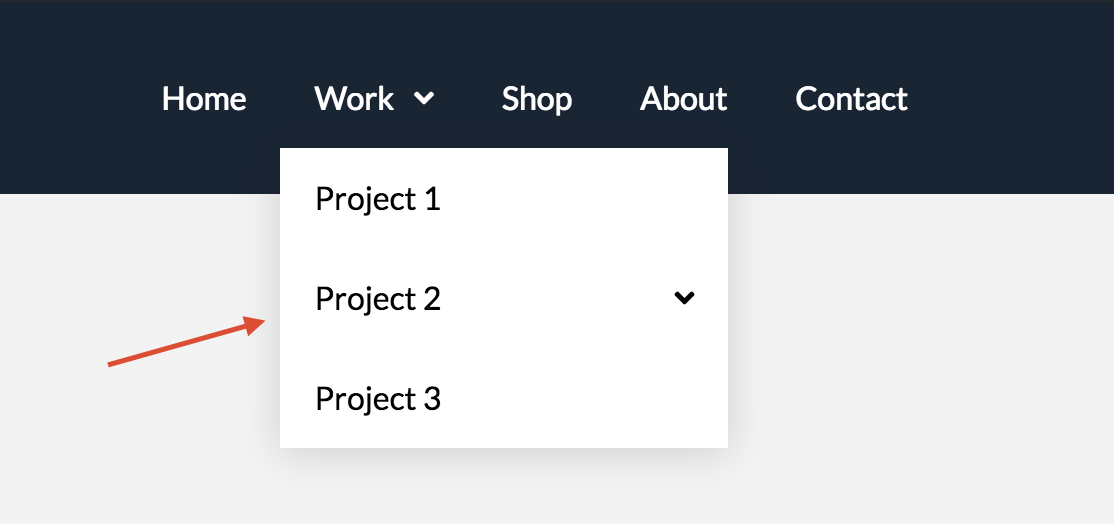

Navigation Inline Dropdown Example

Below are the fields options available:

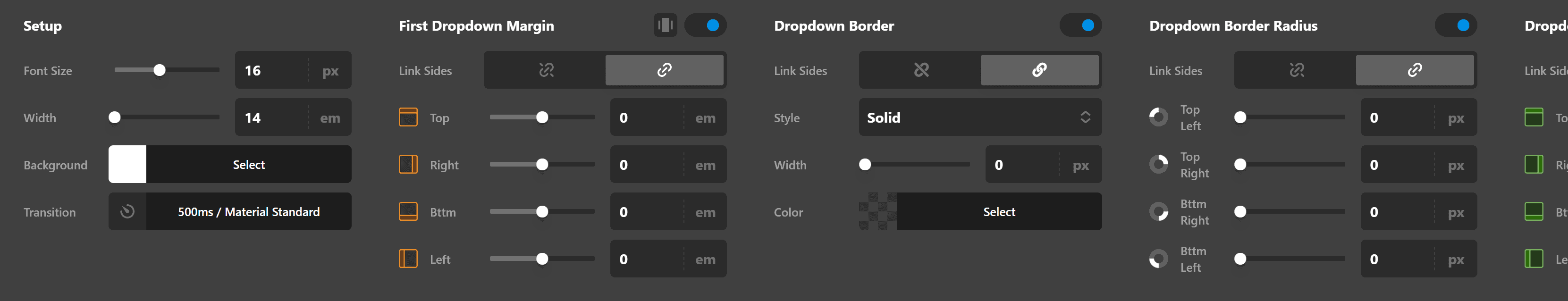

Navigation Inline Dropdown Setup

Setup

The Setup controls consist of:

  • Font Size - The font size used for the dropdown.
  • Width - The width of the dropdown.
  • Background - The Background of the dropdown. On Click a color picker opens.

First Dropdown Margin

The First Dropdown Margin layout controls consist of:

  • Link Sides - Link sides allows you to link up every option within the margin controls so when you change one value all values change. Or you can unlink sides and set each margin option individually.
  • Top - Sets the top margin.
  • Right - Sets the right hand side margin.
  • Bttm - Sets the bottom margin
  • Left - Sets the left hand side margin.

The Dropdown Border controls consist of:

  • Link Sides - Allows you to link up the border control for all sides or unlink sides to control each border side individually.
  • Style - Sets the style of the border such as dashed, dotted etc.
  • Width - Sets the width of the border in pixels by default. Or click on PX to change the value to the units you'd like to use (EM, REM)
  • Color - Sets the color of the border.

The Dropdown Border Radius controls consist of:

  • Link Sides - Link all sides of the border to control all border radius options at the same time, rather than configuring each value individually. If you unlink sides. You can set the border radius controls individually.
  • Top Left - Set the top left radius of the border.
  • Top Right - Set the top right radius of the border.
  • Bttm Right - Set the bottom right radius of the border.
  • Bttm Left - Set the bottom left radius of the border. Do note that you won't see any effect by changing the Border Radius values unless you have already set your Border controls.

The Dropdown padding controls consist of:

  • Link Sides - Link sides allows you to link up every option within the padding controls so when you change one value all values change. Or you can unlink sides and set each padding option individually.
  • Top - Sets the top margin.
  • Right - Sets the right margin.
  • Bttm - Sets the bottom margin.
  • Left - Sets the Left margin.

The Box Shadow controls consist of:

  • X-Offset - Set the offset of the border shadow for the X axis.
  • Y-Offset - Set the offset of the border shadow for the Y axis.
  • Blur - Set the blur of the box shadow.
  • Spread & Position - Set the spread and position of the box shadow.
  • Color - Sets the color of the box shadow.

Next is Sub Links. Click on the Sub Links tab.

Navigation Inline Sub Links Tab

What is referred to as "sublinks" is the container of the sub-menu items like below:

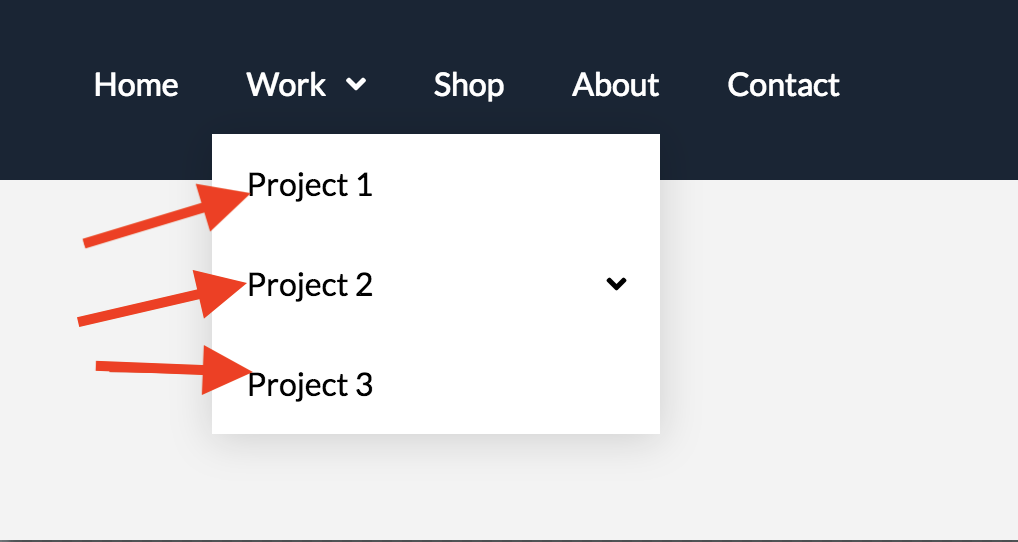

Navigation Inline Sub Links Example

Below are the fields options available:

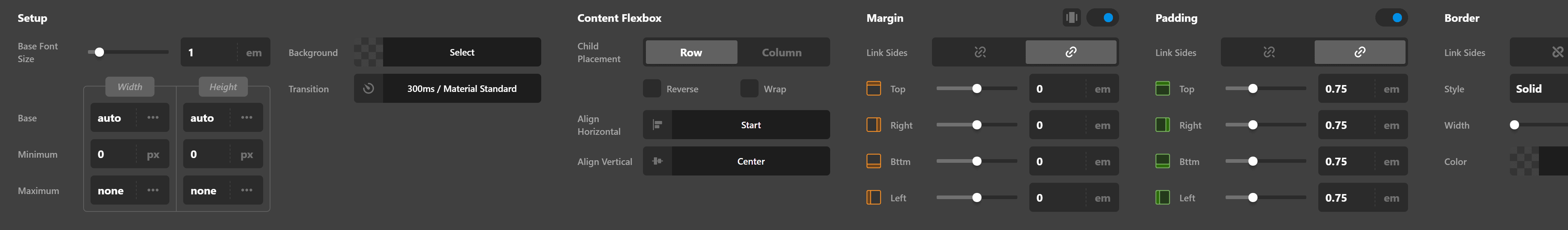

Navigation Inline Sub Links Setup

Setup

The setup controls consist of:

  • Base Font Size - The font size used for the top links.
  • Width & Height - The width and height of the links Can be changed to any required value.
  • Min Width & Height - The minimum width and height the links should be.
  • Max Width & Height - The maximum width and height of the links.
  • Background - Offers two options one called Base base is the background color of the links at all times apart from on hover. And the second option called Interaction interaction is the background color of the links on hover and when the links are interacted with.

Content Flex Layout

The Content Flex Layout controls consist of:

  • Layout - Either set to Row or Column
  • Reverse Layout
  • Wrap Children
  • Horizontal
  • Vertical

Margin

The Margin layout controls consist of:

  • Link Sides - Link sides allows you to link up every option within the margin controls so when you change one value all values change. Or you can unlink sides and set each margin option individually.
  • Top - Sets the top margin.
  • Right - Sets the right hand side margin.
  • Bttm - Sets the bottom margin
  • Left - Sets the left hand side margin.

Padding

The Padding controls consist of:

  • Link Sides - Link sides allows you to link up every option within the padding controls so when you change one value all values change. Or you can unlink sides and set each padding option individually.
  • Top - Sets the top margin.
  • Right - Sets the right margin.
  • Bttm - Sets the bottom margin.
  • Left - Sets the Left margin.

Border

The Border controls consist of:

  • Link Sides - Allows you to link up the border control for all sides or unlink sides to control each border side individually.
  • Style - Sets the style of the border such as dashed, dotted etc.
  • Width - Sets the width of the border in pixels by default. Or click on PX to change the value to the units you'd like to use (EM, REM)
  • Color - Sets the color of the border.

Border Radius

The Border Radius controls consist of:

  • Link Sides - Link all sides of the border to control all border radius options at the same time, rather than configuring each value individually. If you unlink sides. You can set the border radius controls individually.
  • Top Left - Set the top left radius of the border.
  • Top Right - Set the top right radius of the border.
  • Bttm Right - Set the bottom right radius of the border.
  • Bttm Left - Set the bottom left radius of the border. Do note that you won't see any effect by changing the Border Radius values unless you have already set your Border controls.

Box Shadow

The Box Shadow controls consist of:

  • X-Offset - Set the offset of the border shadow for the X axis.
  • Y-Offset - Set the offset of the border shadow for the Y axis.
  • Blur - Set the blur of the box shadow.
  • Spread & Position - Set the spread and position of the box shadow.
  • Color - Sets the color of the box shadow.

Text Setup

The Text Setup controls consist of:

  • Enable - A simple on or off option, set this to on if you want the button to have text or set to Off if you want icon only links
  • Text Overflow - Set text overflow to enable.
  • Primary Text - The main text of the link.
  • Secondary Text - Add secondary text under the primary text. Default is empty (no output).

Text Margin

The Text Margin controls consist of:

  • Link Sides - Link sides allows you to link up every option within the margin controls so when you change one value all values change. Or you can unlink sides and set each margin option individually.
  • Top - Sets the top margin.
  • Right - Sets the right hand side margin.
  • Bttm - Sets the bottom margin
  • Left - Sets the left hand side margin.

Primary Text Format

The Primary Text Setup controls consist of:

  • Font Family - A font selector for the primary text. Default is inherit or you can select a font that's setup within the Font Manager.
  • Font Weight - The font weight for the primary font selected. Available weights depend on the font family selected.
  • Font Size
  • Letter Spacing
  • Line Height

Primary Text Style

The Primary Text Style controls consist of:

  • Font Style - Normal or Italic
  • Text Align - Left, Center, Right, Justify.
  • Text Decoration - Underlined or Strikethrough.
  • Text Transform - Uppercase (force all text to be uppercase), Capitalize (forces the first letter in each word to be a capital), Lowecase (forces all text to be lowercase).
  • Text Color - offers two options. 1: Base, sets the base color of the text. 2: Interaction. Sets the text color when interacted with (on hover) etc.

Primary Text Shadow

The Primary Text Shadow controls consist of:

  • X-Offset - Set the offset of the text shadow for the X axis.
  • Y-Offset - Set the offset of the text shadow for the Y axis.
  • Blur - Set the blur of the text shadow.
  • Spread & Position - Set the spread and position of the text shadow.
  • Color - Sets the color of the text shadow.

Secondary Text Format

The Primary Text Setup controls consist of:

  • Font Family - A font selector for the Secondary text. Default is inherit or you can select a font that's setup within the Font Manager.
  • Font Weight - The font weight for the Secondary font selected. Available weights depend on the font family selected.
  • Font Size
  • Letter Spacing
  • Line Height

Secondary Text Style

The Secondary Text Style controls consist of:

  • Font Style - Normal or Italic
  • Text Align - Left, Center, Right, Justify.
  • Text Decoration - Underlined or Strikethrough.
  • Text Transform - Uppercase (force all text to be uppercase), Capitalize (forces the first letter in each word to be a capital), Lowecase (forces all text to be lowercase).
  • Text Color - offers two options. 1: Base, sets the base color of the text. 2: Interaction. Sets the text color when interacted with (on hover) etc.

Secondary Text Shadow

The Secondary Text Shadow controls consist of:

  • X-Offset - Set the offset of the text shadow for the X axis.
  • Y-Offset - Set the offset of the text shadow for the Y axis.
  • Blur - Set the blur of the text shadow.
  • Spread & Position - Set the spread and position of the text shadow.
  • Color - Sets the color of the text shadow.

Graphic Setup

The Graphic Setup controls consist of:

  • Enable - Enable or Disable the output of a graphic. When Graphic setup is set to On you'll see another option within the Graphic Setup controls and another two set of controls called Graphic Margin and Graphic Icon.
  • Type - Select what type of graphic you want to use either a Icon, Image Or Toggle. Only shows if Enable is set to On.

Graphic Margin

The Graphic Margin controls consist of:

  • Link Sides - Link sides allows you to link up every option within the margin controls so when you change one value all values change. Or you can unlink sides and set each margin option individually.
  • Top - Sets the top margin.
  • Right - Sets the right hand side margin.
  • Bttm - Sets the bottom margin
  • Left - Sets the left hand side margin.

Graphic Icon

The Graphic Icon controls only show if you selected the icon option in the Graphic Setup control and the controls consist of:

  • Font Size & Secondary- If you check the Secondary box you'll see a new option called Secondary Icon.
  • Width & Height - The width and height of the icon
  • Color - offers two options. 1: Base, sets the base color of the icon. 2: Interaction. Sets the icon color when interacted with (on hover) etc. Icons for navigation menus are setup within the WordPress Admin > Appearance > Menus covered in our FAQ here.

Sub Indicator Setup

The Sub Indicator Setup controls consist of:

  • Enable - Either output a sub indicator (on) or don't output a sub indicator (off) the sub indicator is for sub navigation links and shows if you have child links of a parent link.
  • Font Size - The Font Size used for the sub indicator.
  • Width & Height - The Width and Height of the sub indicator defaults to auto.
  • Icon - Icon Picker to select an icon for use as the sub indicator.
  • Color Base - The base color for the sub indicator when not being interacted with.
  • Color Interaction - The color used for the sub indicator when being interacted with (on click, on hover etc).

Sub Indicator Margin

The Sub Indicator Margin layout controls only shows if Sub Indicator Setup is set to On and consist of:

  • Link Sides - Link sides allows you to link up every option within the margin controls so when you change one value all values change. Or you can unlink sides and set each margin option individually.
  • Top - Sets the top margin.
  • Right - Sets the right hand side margin.
  • Bttm - Sets the bottom margin
  • Left - Sets the left hand side margin.

Interactions Setup

The Interactions Setup controls consist of:

  • Text - The text interaction, how the text changes on hover. Available options include: None, Slide Top, Slide Left, Slide Right, Slide Bottom, Scale Up, Scale Down, Flip X, Flip Y.
  • Graphic - The graphic interaction, how the graphic changes on hover. Available options include: None, Scale Up, Scale Down, Flip X, Flip Y.
  • Particles - When you enable Primary Or Secondary particles you'll see new controls and options for the particle setups. This allows you to add particle effects on hover, great to make your menu stand out!

Primary Particle Setup

The Primary Particle Setup controls consist of:

  • Location - Where the Primary Particle effect will display.
  • Placement - Where the Primary Particle effect will display relative to the Toggle.
  • Scale & Delay - Wether to Scale X, Scale Y or Scale all along with the delay in seconds of the effect.
  • Transform starts from - Where the transform of the effect takes place.

Primary Particle Style

The Primary Particle Style controls consist of:

  • Width & Height - The width and height of the particle.
  • Radius & Color - The radius of the particle effect along with it's primary color.
  • Inline CSS - Any inline CSS you wish to apply to the particle effect.

Secondary Particle Setup

The Secondary Particle Setup controls consist of:

  • Location - Where the Secondary Particle effect will display.
  • Placement - Where the Secondary Particle effect will display relative to the Toggle.
  • Scale & Delay - Wether to Scale X, Scale Y or Scale all along with the delay in seconds of the effect.
  • Transform starts from - Where the transform of the effect takes place.

Secondary Particle Style

The Secondary Particle Style controls consist of:

  • Width & Height - The width and height of the particle.

  • Radius & Color - The radius of the particle effect along with it's secondary color (for interactions).

  • Inline CSS - Any inline CSS you wish to apply to the particle effect.

Customize

The customize section consists of controls to customize the element if you are into HTML, CSS, and Javascript.

Navigation Inline Customize
  • ID - Use this option to set an HTML ID for the element. The ID should be unique on the page.
  • Class - Use this option to set an HTML Class for the element. You can use the class for your custom CSS code.
  • Element CSS - Use this option to have better control over the element to access the inner tags of the element using $el as the CSS selection. Click here for more detailed information.
  • Hide During Breakpoint - Use this option to hide the element on different device sizes. Click here for more information.
  • Custom Attributes - Use this option to add a custom attributes to the wrapper HTML tag of the element. Such as data-info=123. You can use the option to inject custom information into the element to use on your customization code.
Custom Attributes

Demo

To see a live demo of the Navigation Inline Element click here.

Summary

Now you know how to add inline menus using the Navigation Inline Element. You've learned the various settings available to customize the design of the main links (top links), the dropdown menu and the sub-menu items. With this basic knowledge, you can virtually achieve any great-looking navigation without touching any code.

See something inaccurate? Let us know
