Woo Checkout Editor

In this article, we're going to explain the Woo Checkout Editor extension which comes with your X and Pro licensed copy. You'll learn what it is used for, what settings are available to you, how to add new checkout fields and much more.

  1. How to Enable the Extension
  2. Overview
  3. Setup
  4. Validation Values
  5. Conditional Values
  6. Adding a Checkout Field
  7. Managing Other Fields
  8. Ordering Fields
  9. Summary

With Woo Checkout Editor you can easily alter your WooCommerce checkout page by adding and removing fields.

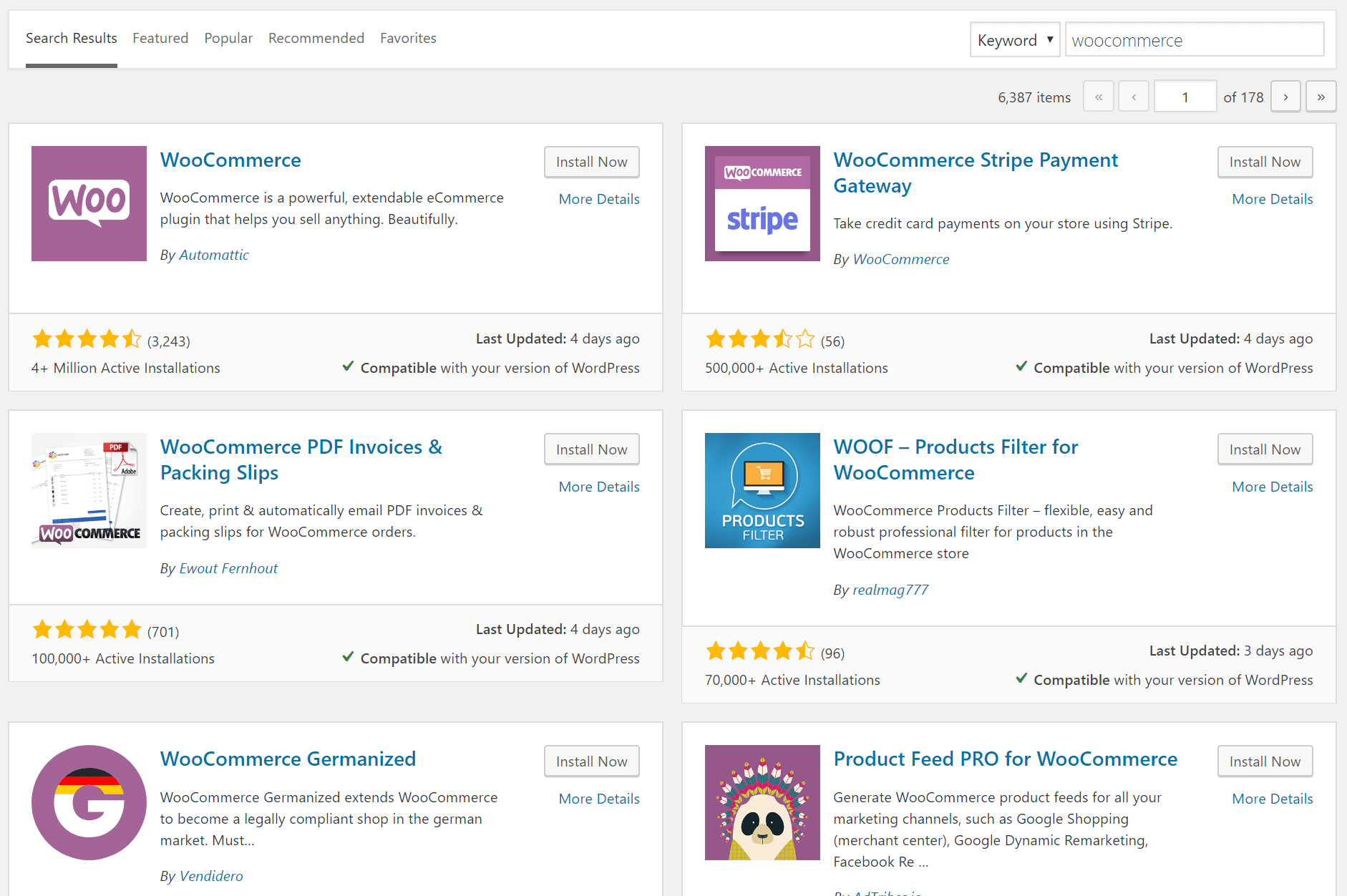

This article assumes that you have already installed the WooCommerce plugin.

WordPress Plugin Search

How to Enable the Extension

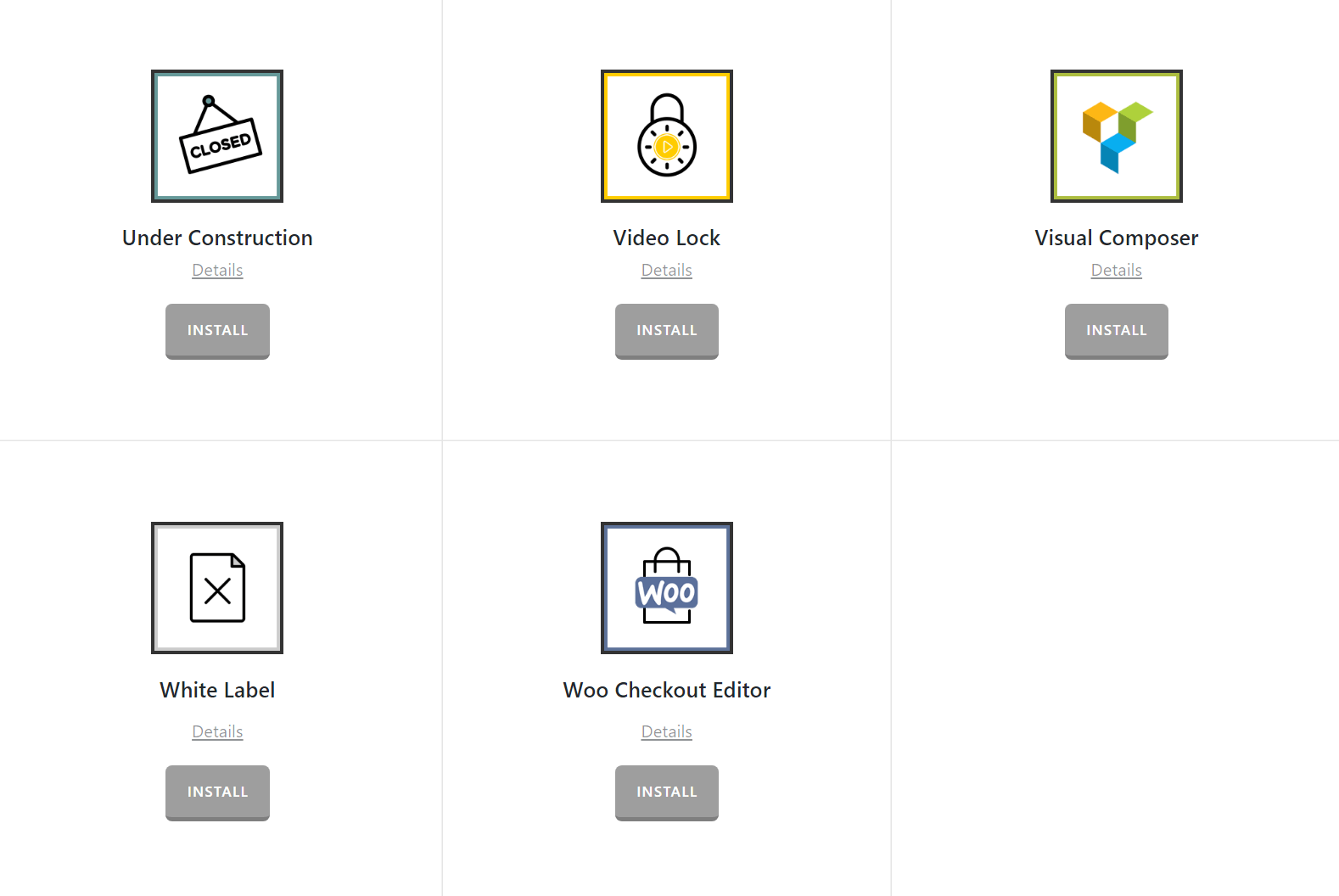

Go to Pro > Validation, or X > Validation, then look for Woo Checkout Editor. Click Install.

Extensions Overview

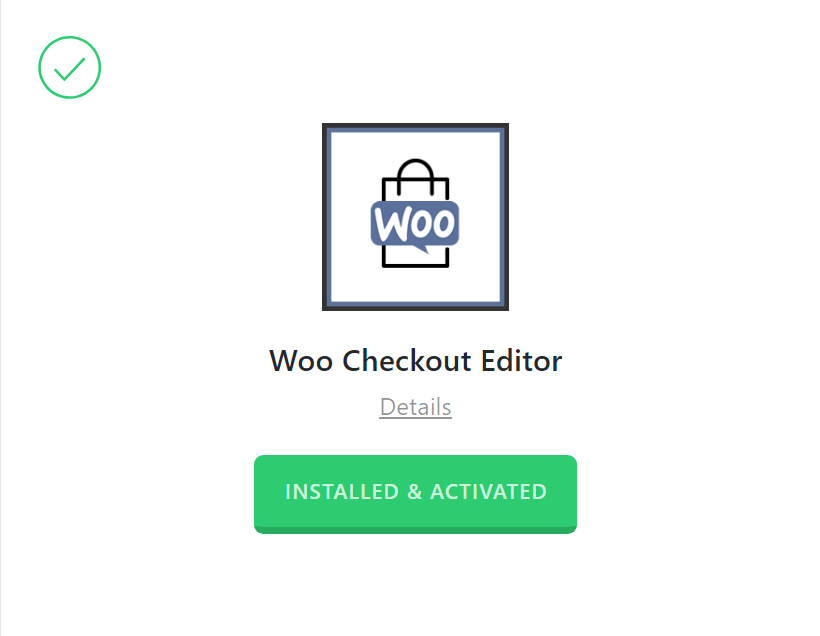

Once installed, the Install button will change and say Activate. Click that button and it will activate the plugin. You will then see the status change to Installed and Activated.

Woo Checkout Editor Activated

Overview

Woo Checkout Editor is a simple and easy to use WooCommerce Extension that allows you to modify, edit, and remove fields from the WooCommerce checkout process.

Sometimes the default WooCommerce checkout fields aren't perfectly applicable to your business. You might want to remove some of them or add new ones. Furthermore, you might want to change the order of the fields.

All these checkout page customizations can be done using PHP code via WooCommerce actions and filters. If you are comfortable working with code, then you'll have no problem doing these customizations without the use of plugins. However, if coding is not your strength, or even if it is and you don't want to reinvent the wheel, Woo Checkout Editor will make your life easier.

Setup

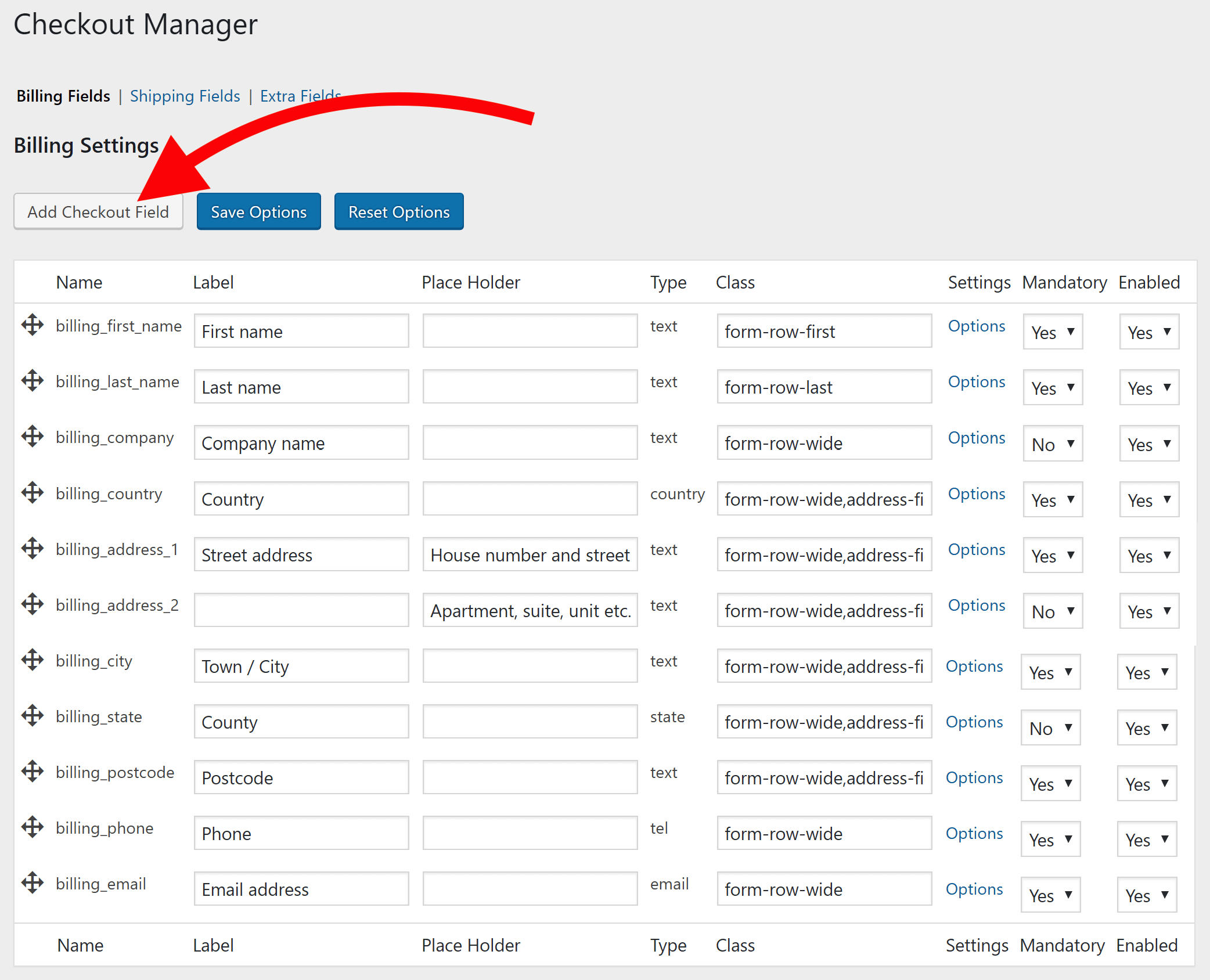

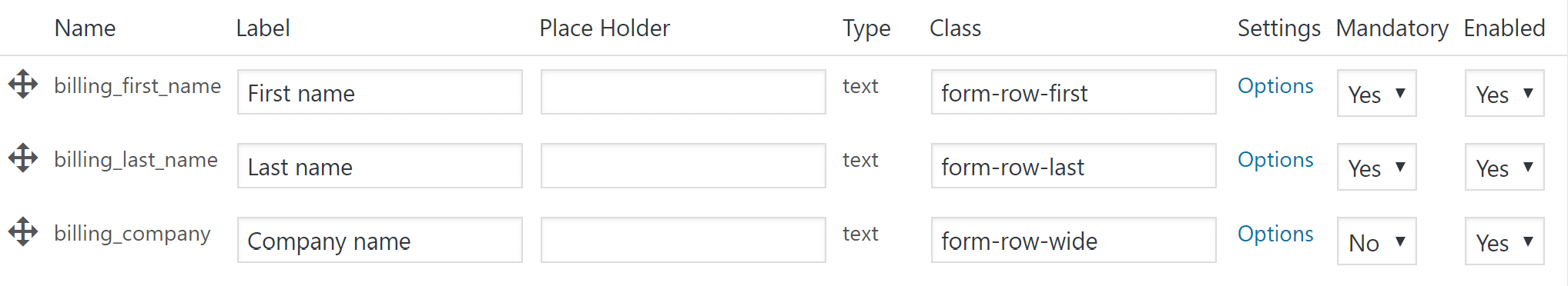

If you click on Checkout Manager under WooCommerce you should see the main checkout manager screen like this:

Woo Checkout Editor Overview

Now, let's briefly discuss what each column is used for.

Name

Unless you add a new checkout field using the Add Checkout Field button (which we'll discuss later), the name field cannot be changed. Names such as billing_first_name, billing_last_name, billing_country, etc are pre-defined names by WooCommerce and cannot be changed.

If you do add a new checkout field, you have the ability to set the checkout field. The name is saved in the WordPress database as an identifier for the field.

Label

This is the text that appears above input field.

Woo Checkout Editor Labels

It might be useful to know that you can leave the label field blank if you don't want the label to appear on the checkout page.

Placeholder

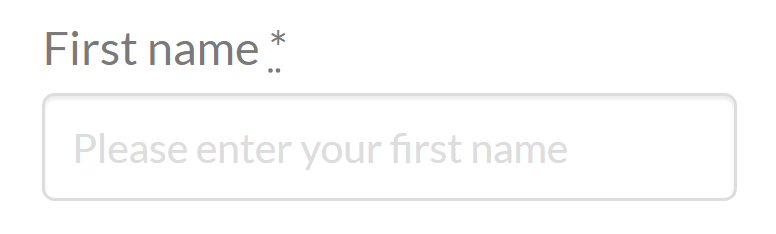

This is the text that appears inside the input field itself. Let's say you want that the first name input field should have a text inside it that says, "Please enter you first name." The placeholder field is where you put that text.

Woo Checkout Editor Label Placeholder

Type

The available field types are:

  • Text
  • Password
  • Phone
  • Textarea
  • Checkbox
  • File
  • Radio
  • Select
  • Multi-Select

Just as in the Name column, you cannot change the Type for pre-defined WooCommerce checkout fields. But when you add a new checkout field, you have the ability to choose the field type.

Class

You will notice that there are 3 common values in all the fields. They are:

  1. form-row-first
  2. form-row-last
  3. form-row-wide

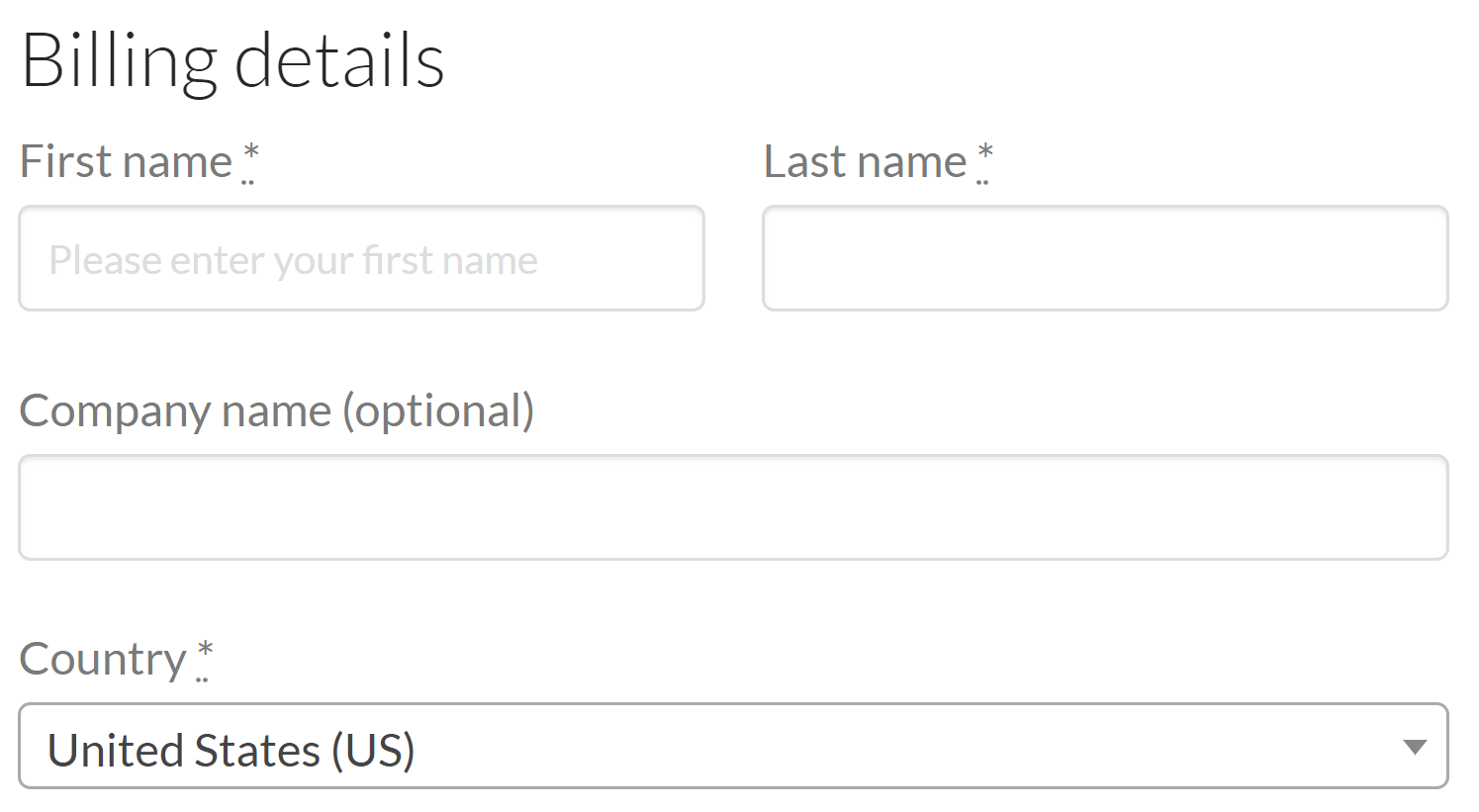

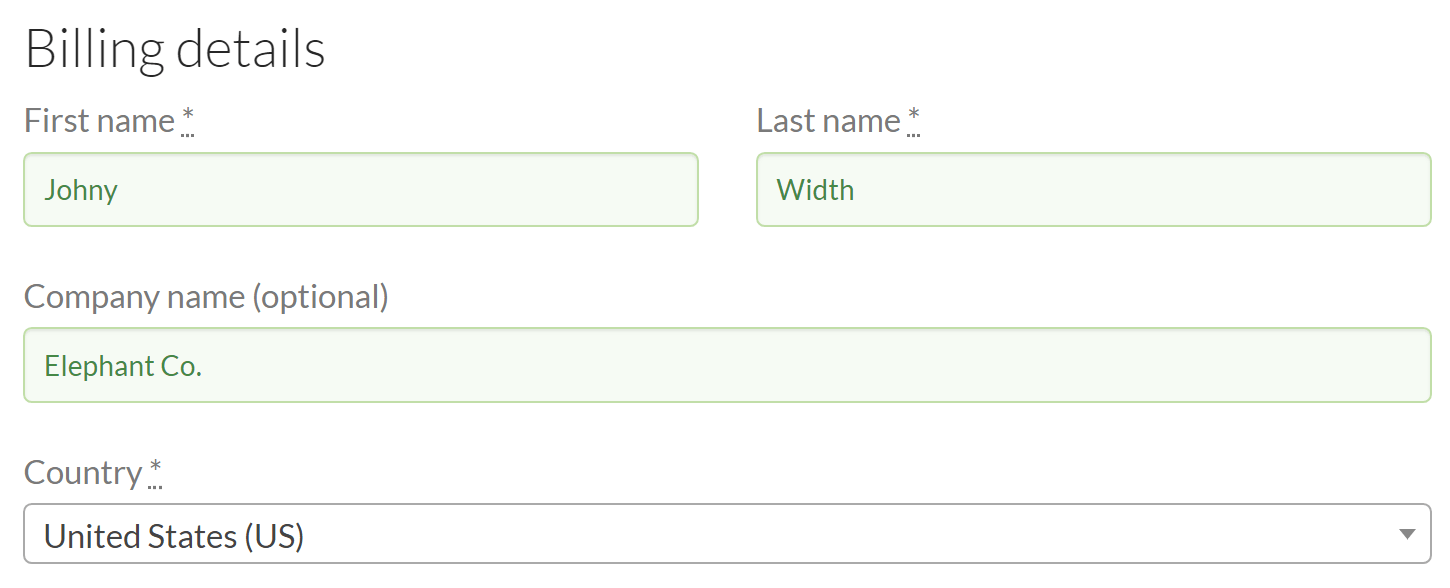

Those 3 are WooCommerce-defined CSS Classes. Notice the and Last Name fields. By default, they are beside each other.

Woo Checkout Editor Label Billing

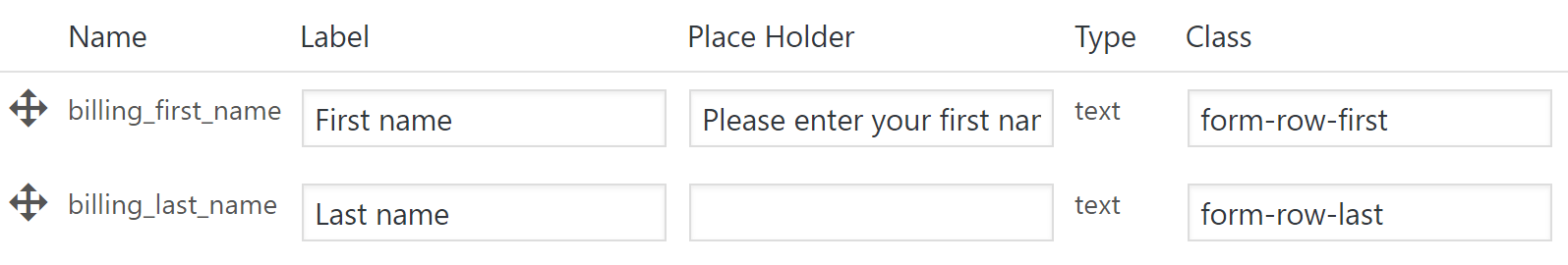

On the Checkout Editor, the first name uses the form-row-first class and the last name uses form-row-last.

Woo Checkout Editor First & Last Name Billing Field

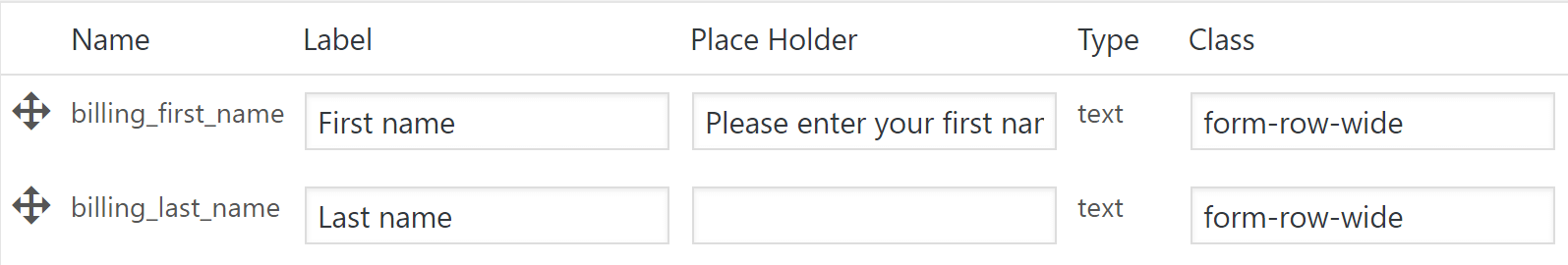

Now, let's say you want to make First name take one entire row and Last name to take another. To do that, we change the classes for both to form-row-wide.

Woo Checkout Editor First & Last Name Billing Field

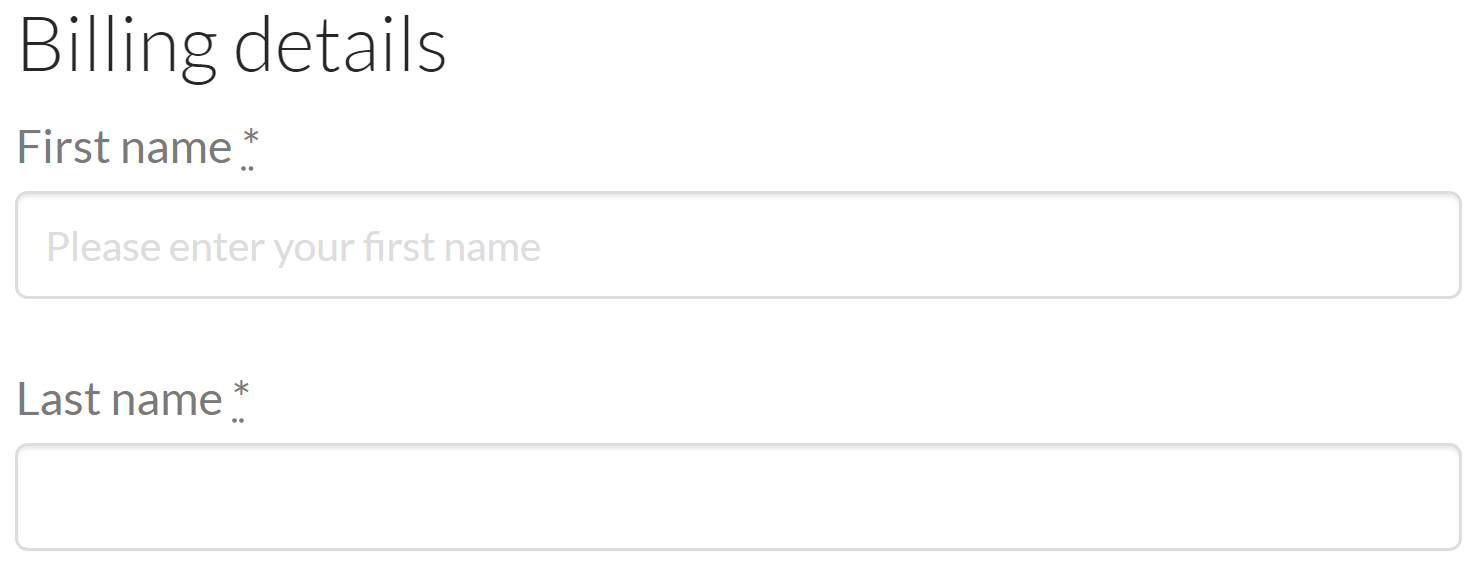

Now, this is how it will look like on the Checkout Page:

Woo Checkout Editor Billing Details

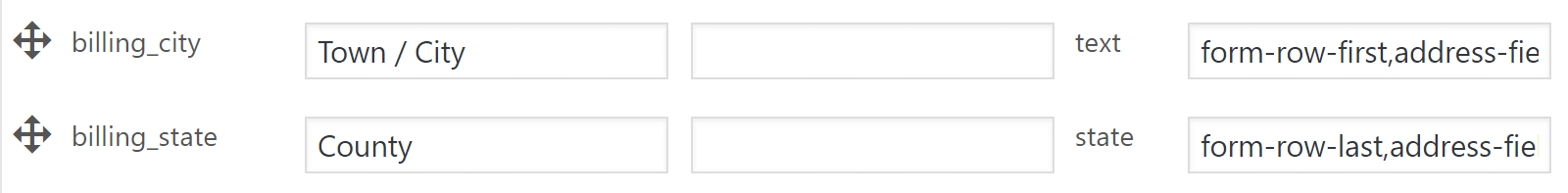

Let's take one last example. Let's say you want the City and State fields to be beside each other in one row because by default they take one row each. To do that, we change the classes of both from form-row-wide to form-row-first and form-row-last respectively. Then click Save Options.

Woo Checkout Editor Billing Details Town & Country

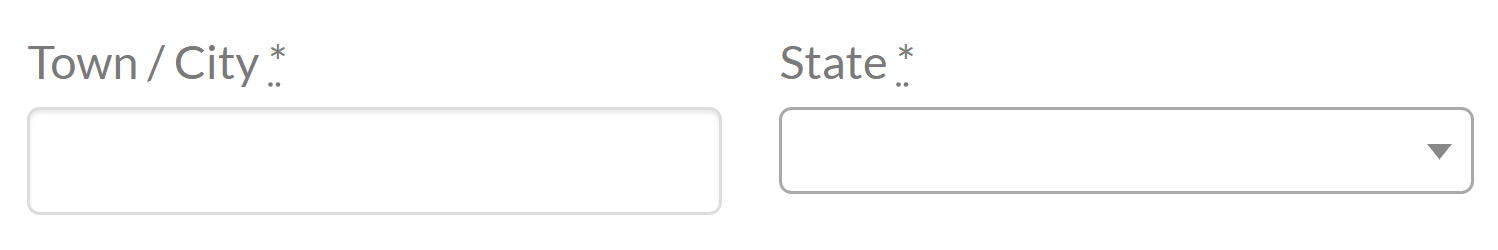

This will how they will look on the checkout page.

Woo Checkout Editor Billing Detais Town & Country Preview

Settings

On the settings column, you'll see an Options link. When you click it, a modal popup will appear that contains two tabs: Validation and Conditionals.

Woo Checkout Editor LabelsWoo Checkout Editor Validation Settings

Under Validation, you can set additional validation rules that the field should follow. Under Conditionals, you can set rules/conditions on when to display the field and when to hide it. Both of these are discussed in the sections that follow.

Mandatory

Yes makes the field required. It will add an * sign to show that it is required. If a field is required/mandatory, it will automatically be validated on the Checkout page.

Enabled

Selecting No hides the field from the checkout page and Yes displays it.

Validation Values

The default WooCommerce fields such as discussed earlier (billing_first_name, billing_email, billing_state, etc) all have validation rules in them. For example, if a customer enters an invalid email address format to the billing_email field, WooCommerce automatically prompts an error.

However, you may want to additional validation rules to these default fields. To do that, click on Options, and under the Validation Tab you'll see the Validation Settings dropdown. The dropdown has the following options:

  • Post Code
  • Phone
  • Email
  • State
  • Custom

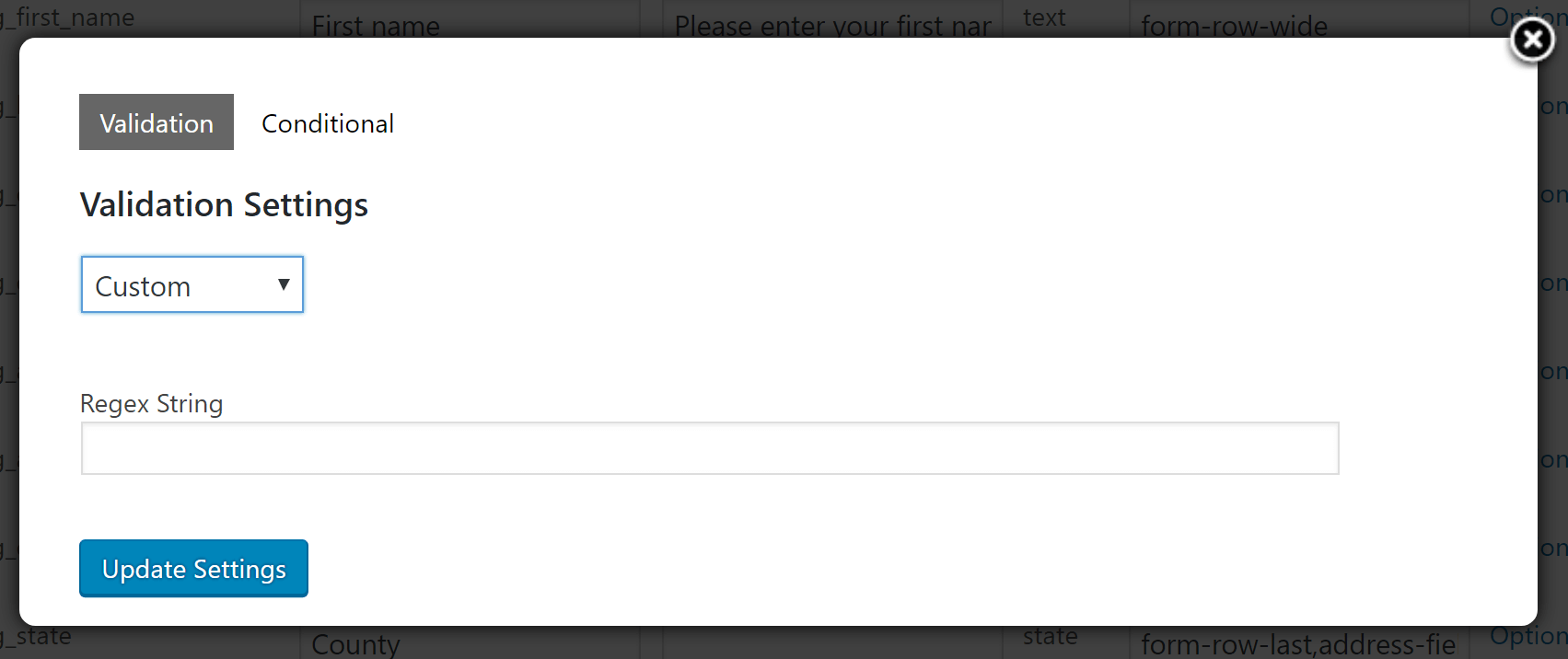

If you set the value to Custom you'll see additional options like this:

Woo Checkout Editor Validation Settings Custom

Enter your own custom Regex. Regex stands for regular expression. You can learn more about how to use Regex here.

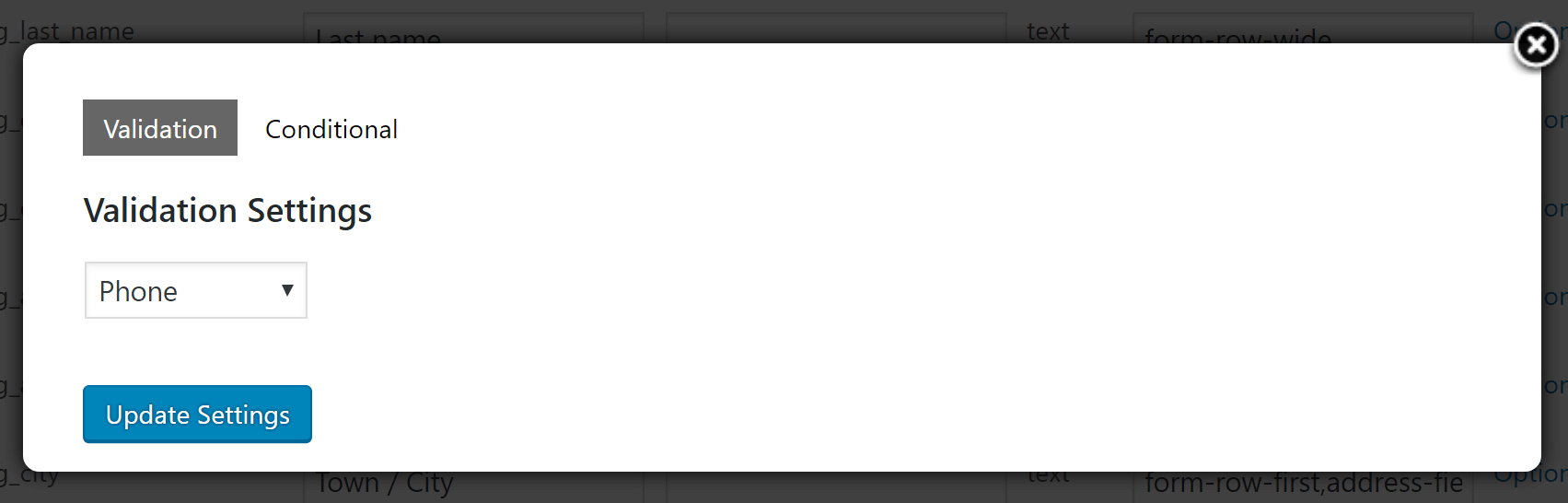

Now, let's say you added a new field that saves the customer's Personal Phone Number (just as an example). You add that field (more on that later), then set up a validation rule. This time, you choose the Phone option from the Validation Settings dropdown.

Woo Checkout Editor Validation Settings Phone

This is how you add validation to custom checkout fields. You can do the same if the new field is an email, a state and a zip code.

Conditional Values

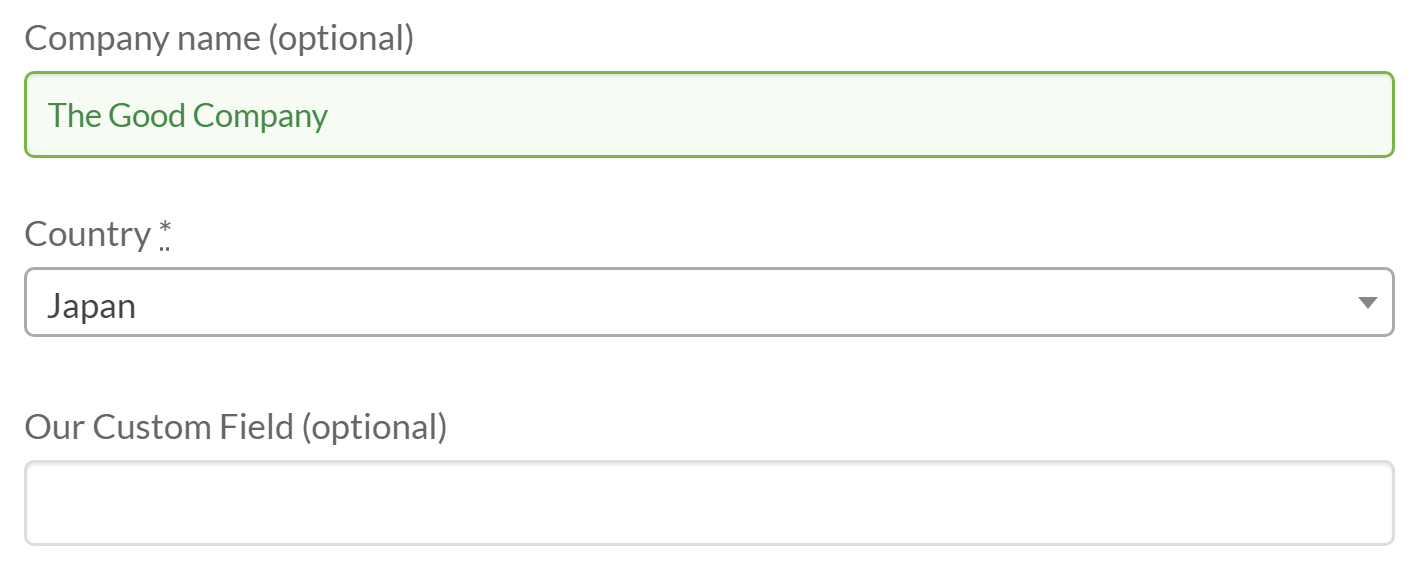

You can display or hide a field based on certain rules / conditions. Let's say you created an additional field with a label of "Our Custom Field" that will only be shown if the customer's country is Japan.

Woo Checkout Editor Labels Country

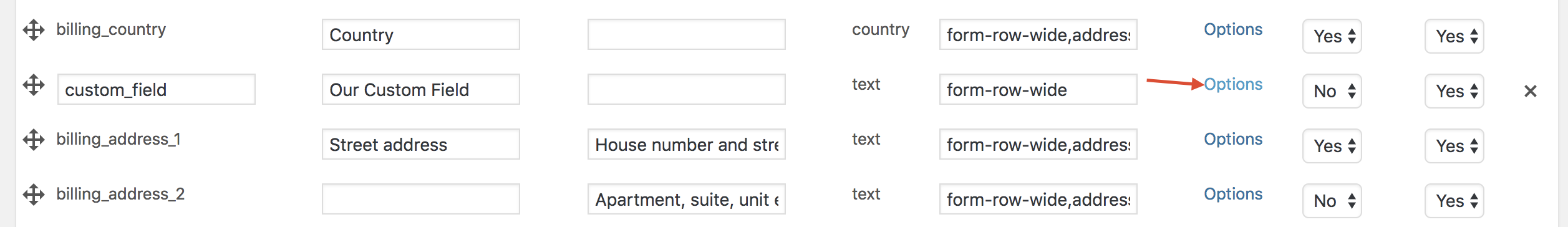

On the Woo Checkout Editor screen, click the Options link of the country field (or whatever field you want to conditionally hide / show) to display the popup.

Woo Checkout Editor Label Options

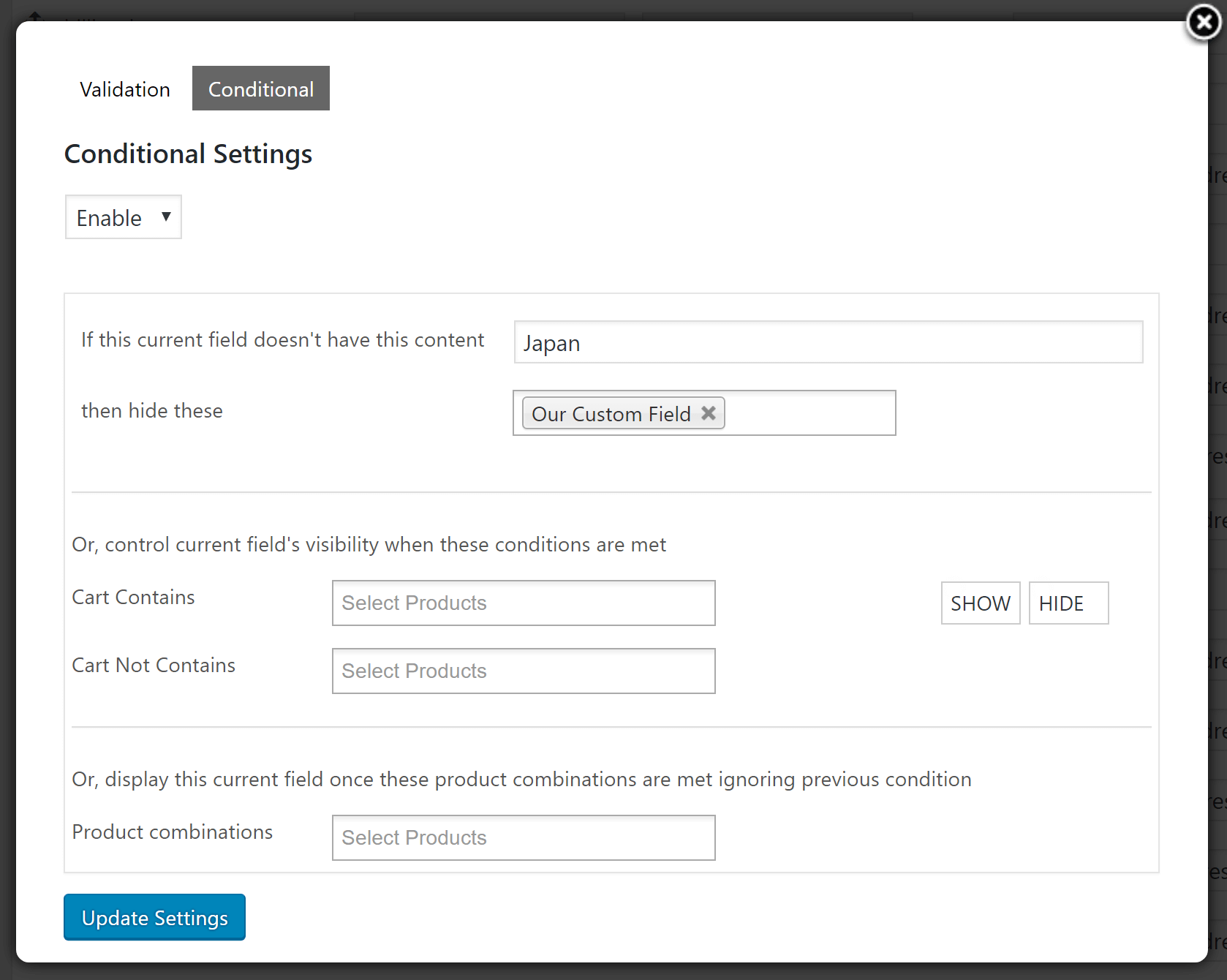

On the popup, do the following:

  • Click on the Conditional tab
  • Select Enable on the Conditional Settings dropdown
  • On the If this current field doesn't have this content field, enter Japan
  • On the then hide this field, select Our Custom Field.
Woo Checkout Editor Conditional Settings

What #'s 3 and 4 mean, if we are to use plain human language, is something like this: "Display Our Custom Field only if Country field is set to Japan.

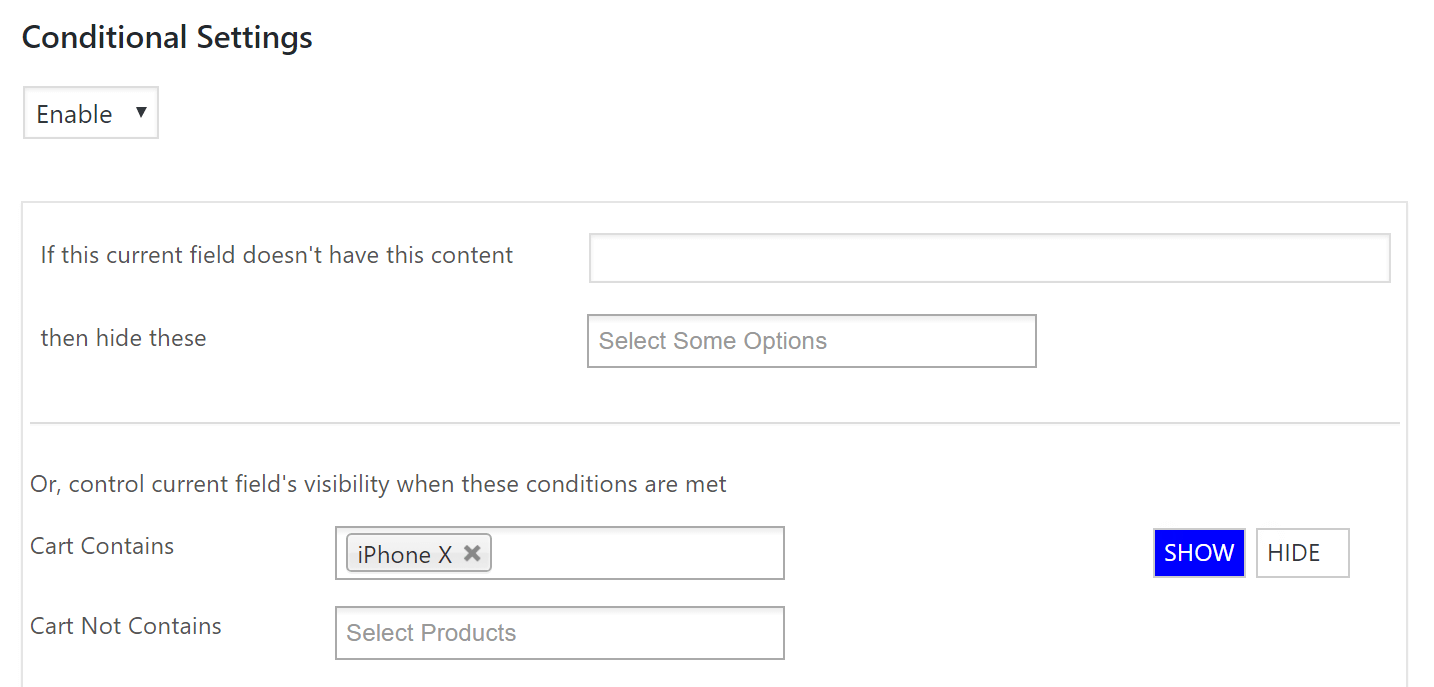

You also have the option to show the said field depending on whether it contains a product or not. Let's say you want to display Our Custom field only if the product iPhone X is in the cart. This time, click Options link opposite Our Custom field. Then you have to enter and select iPhone X beside the Cart Contains dropdown.

Woo Checkout Editor Conditional Settings

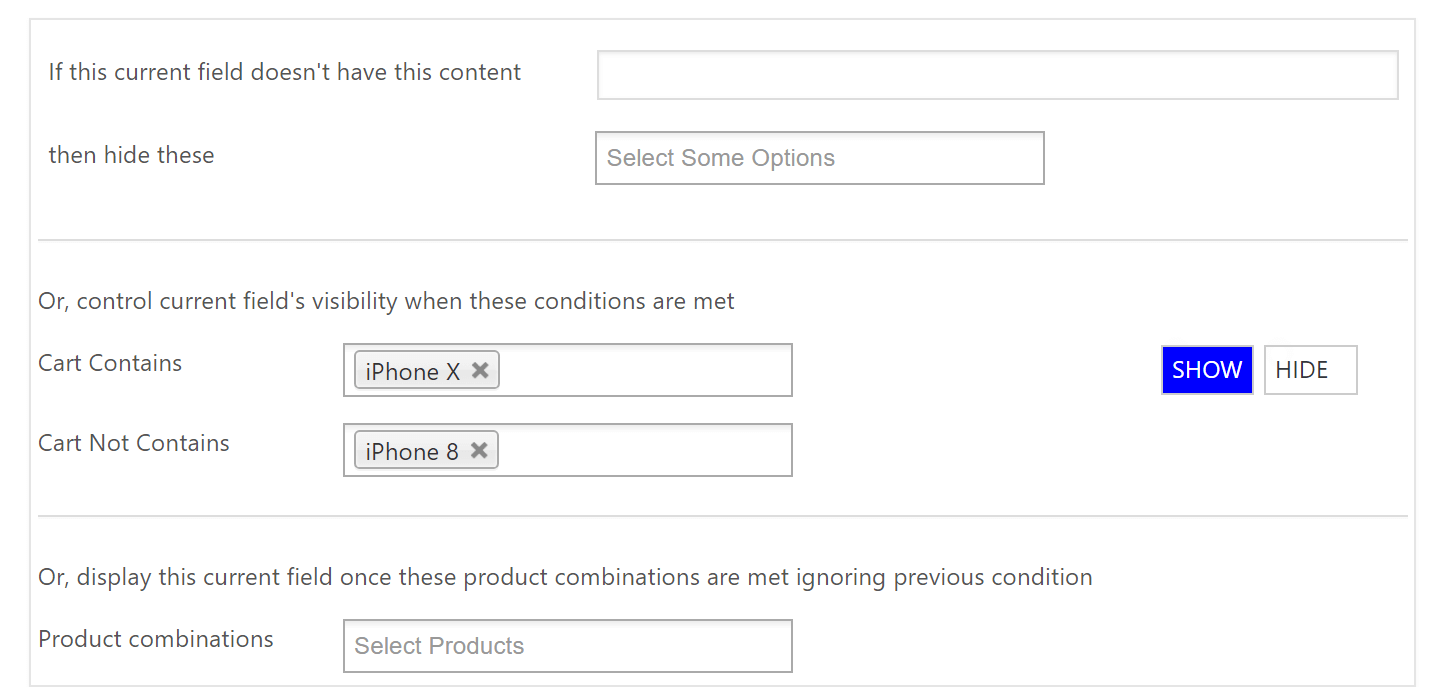

Now let's say you want to display Our Custom field if iPhone X is in the cart but not if iPhone 8 is in it. To achieve that, follow what is on the screenshot below:

Woo Checkout Editor Conditional Settings

Adding a Checkout Field

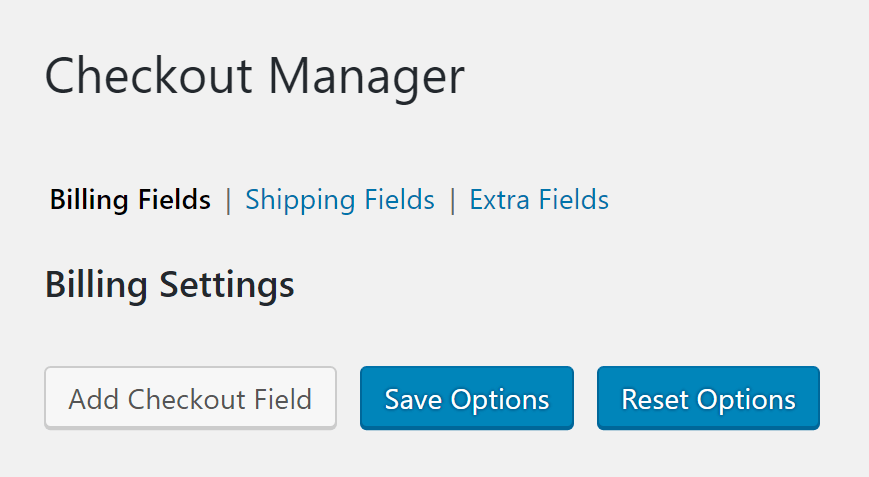

Click on Add Checkout Field and you'll see your new field added like this:

Woo Checkout Editor Checkout Fields

You'll need to enter the field name, the placeholder and of course select the field type. Also don't forget to enable the field. By default the value is No. You'll want to switch that to Yes.

The available field types are:

  • Text
  • Password
  • Phone
  • Textarea
  • Checkbox
  • File
  • Radio
  • Select
  • Multi-Select

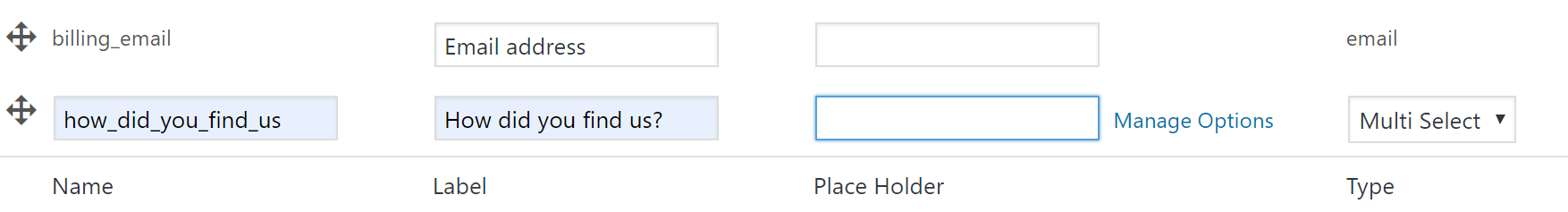

Depending on the field type selected you'll see different options. For example, if you chose either Select or Multi-Select you'll see additional Manage Options link like this:

Woo Checkout Editor Fields

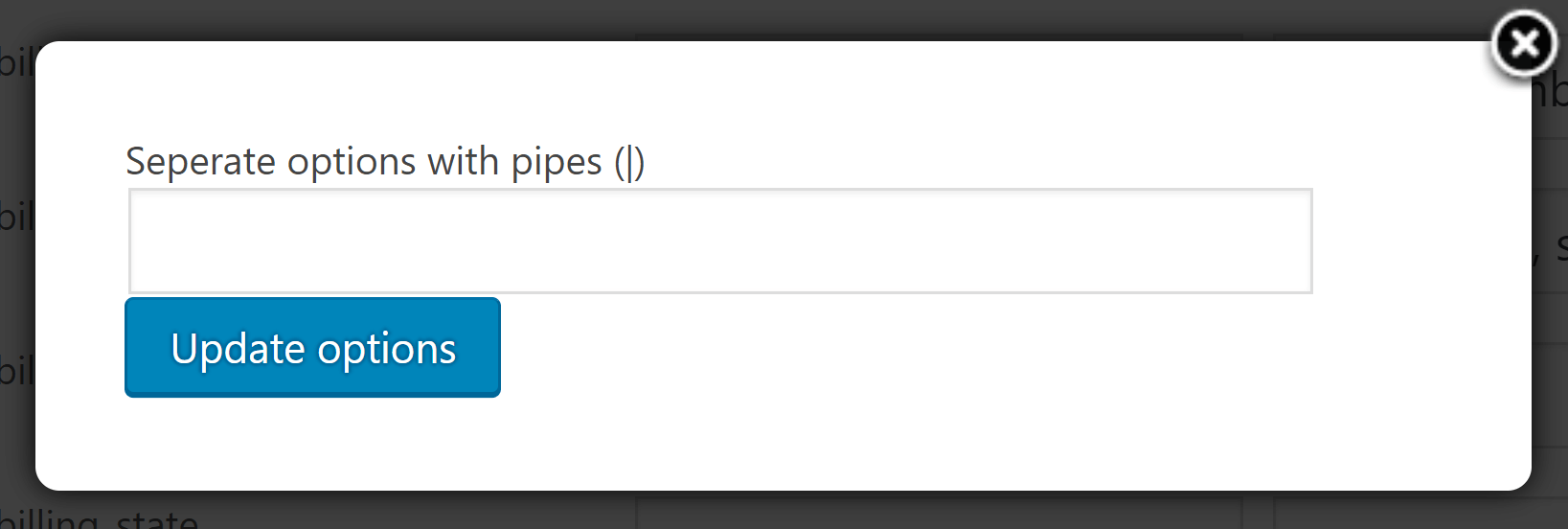

Clicking on Manage Options you'll see a modal window to add your options to like this:

Woo Checkout Editor Manage Options Details

Let's say you've added a Select / Multi-select field and you wanted to add 3 options. The options are as follows:

  1. Search Engines
  2. PPC
  3. Friends

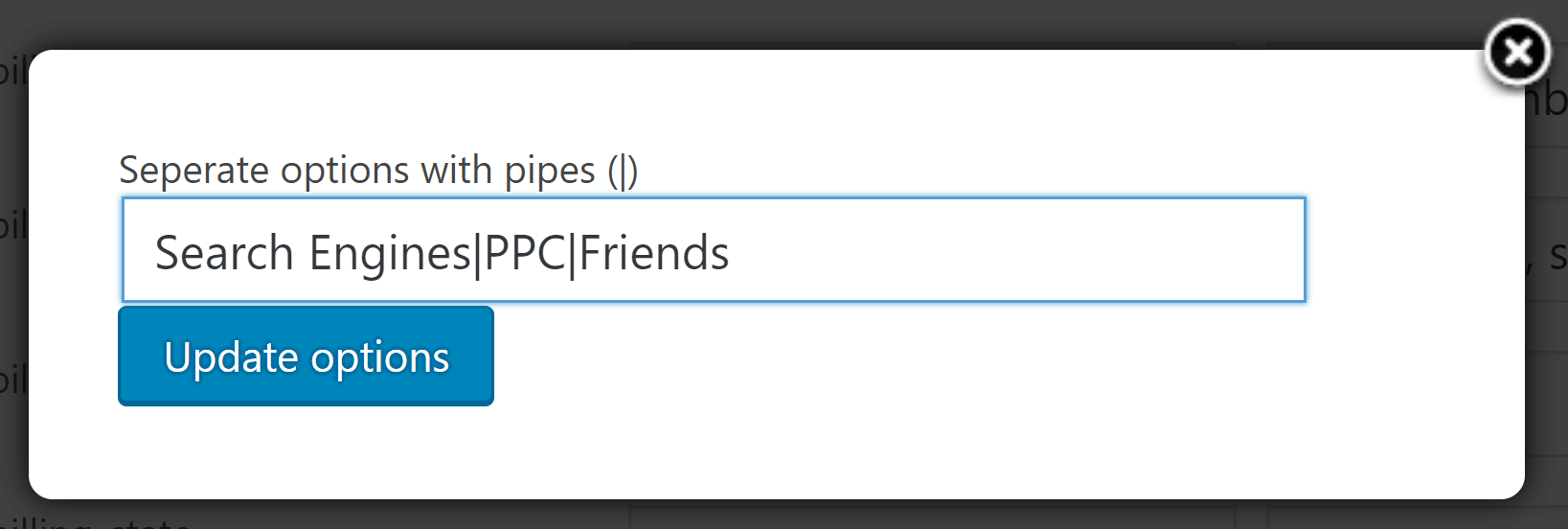

To add these options, you separate them by "|" as shown below:

Woo Checkout Editor Manage Options Details

Managing Other Fields

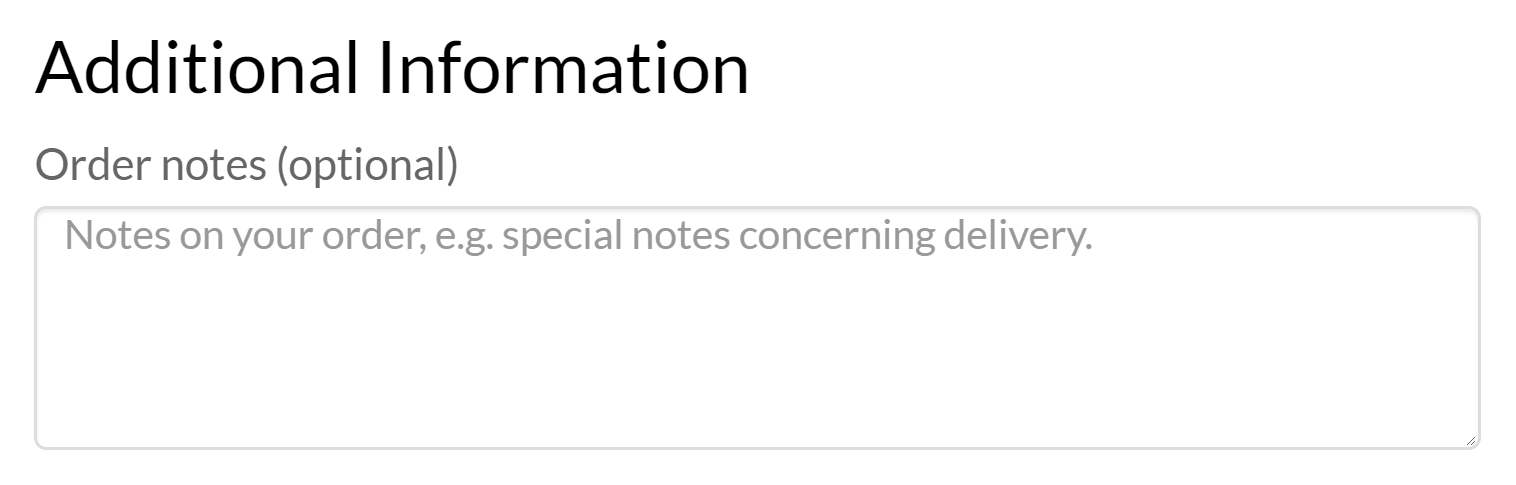

The WooCommerce Checkout Field Editor extension not only allows you to edit Billing Fields but also Shipping Fields and Extra Fields (such as the _Additional Information _field).

Woo Checkout Editor Additional Information

Ordering Fields

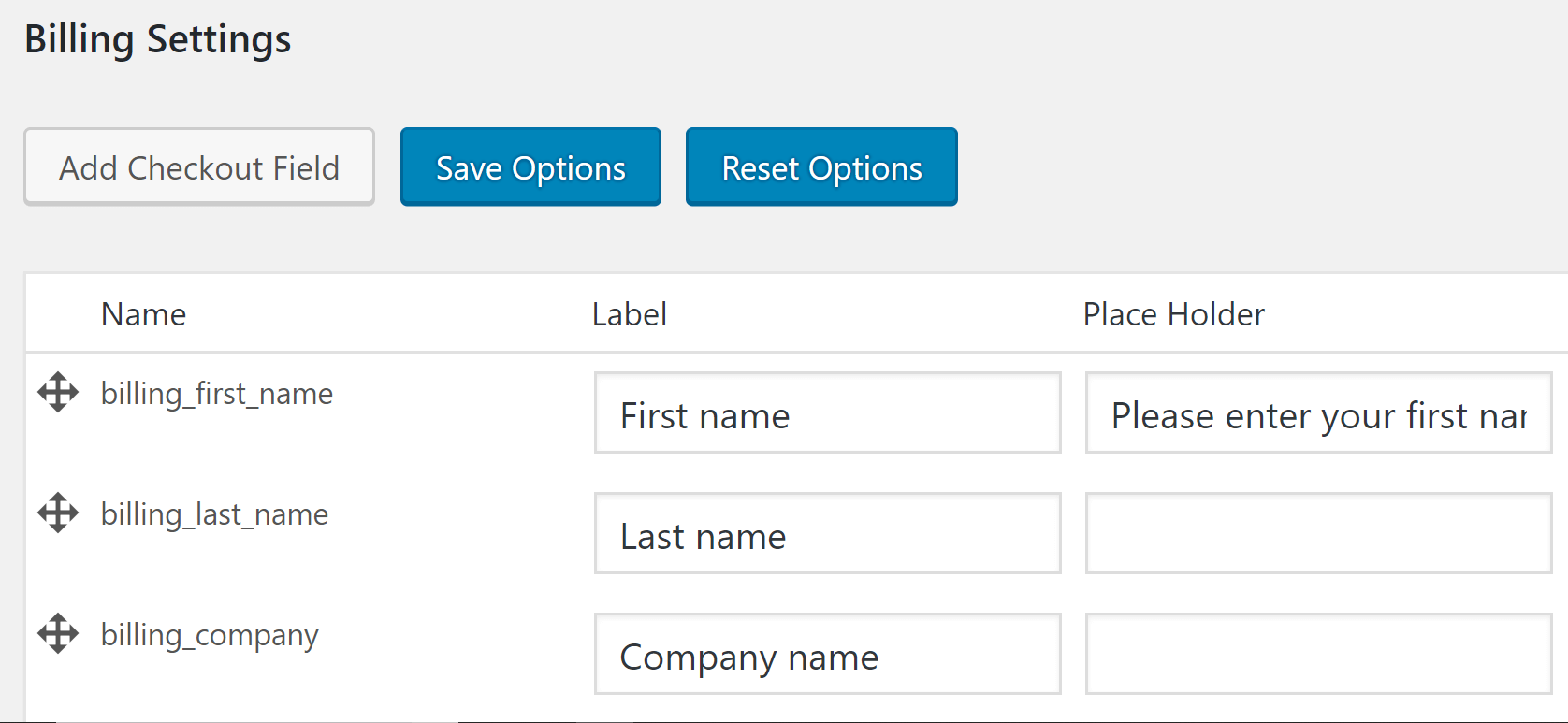

Simply drag and drop fields into the positions you want.

Woo Checkout Editor Fields Re-Ordering

Once you're happy with everything click on Save Options and your new checkout will be ready!

Summary

Now you know how to customize your WooCommerce checkout fields using the WooCommerce Checkout Editor Extension that comes along with your licensed copy of X or Pro. You've learned how to enable the Extension, how to add new fields, how to setup existing fields, add validation, and to display or hide a field depending on certain rules/conditions. Lastly, you've learned how to change the order of the fields.
