Accordion

In this article, we're going to explain how to use the Accordion element in all its nuances.

  1. Element Breakdown
  2. Available Controls
  3. Customize
  4. Demo
  5. Summary

The Accordion element is available across all three builders. The Content Builder, the Header Builder and the Footer Builder. The purpose of the element is to output multiple groupings of content within a traditional "accordion" style component, which can be expanded or collapsed to reveal various sets of information.

Element Breakdown

The Accordion element is made up of many sub elements that work towards achieving its desired effect. The breakdown of how this markup works is as follows:

  • Accordion (.x-acc)
  • Accordion Item (.x-acc-item)
  • Header (.x-acc-header)
  • Content (.x-collapsed - Contains .x-acc-content)

What we can see from the representative diagram above is that every Accordion is made up of one or more (typically at least 2) Accordion Items, and each Accordion Item contains its own Header and Content areas. The Header of the Accordion Item serves as the toggle that users can click to reveal the collapsable Content area. Below we will walk through the various controls available for each section of the Accordion and how you might use them to achieve certain looks.

Available Controls

In this section we will walk through each control grouping and pay special attention to any unique controls or things of note.

Accordion

The base level control grouping is labeled Accordion, which styles the containing element that holds all Accordion Items. This is also where you will add your Accordion Items, which can be inspected to adjust content as needed. The first thing you will find in this control grouping is the Add Items control box:

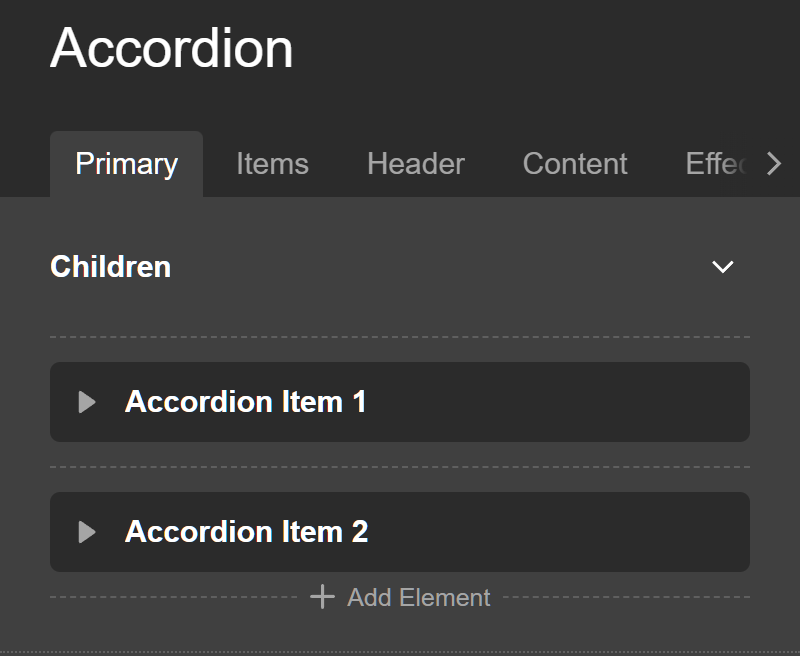

Accordion Items

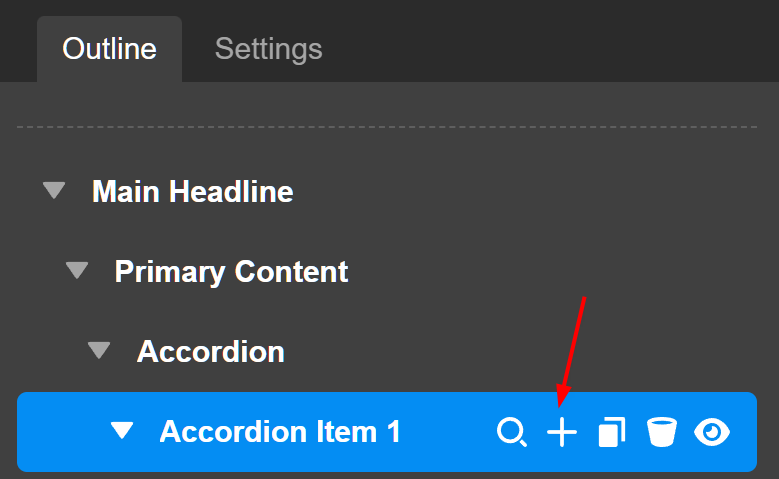

Here you can add as many items as you need to your Accordion, as well as inspect, duplicate, and delete these items as you wish. You can quick edit the title content of each Accordion Item by double-clicking the title on each item, or you can click the "inspect" button (the magnifying glass), to go into that specific item:

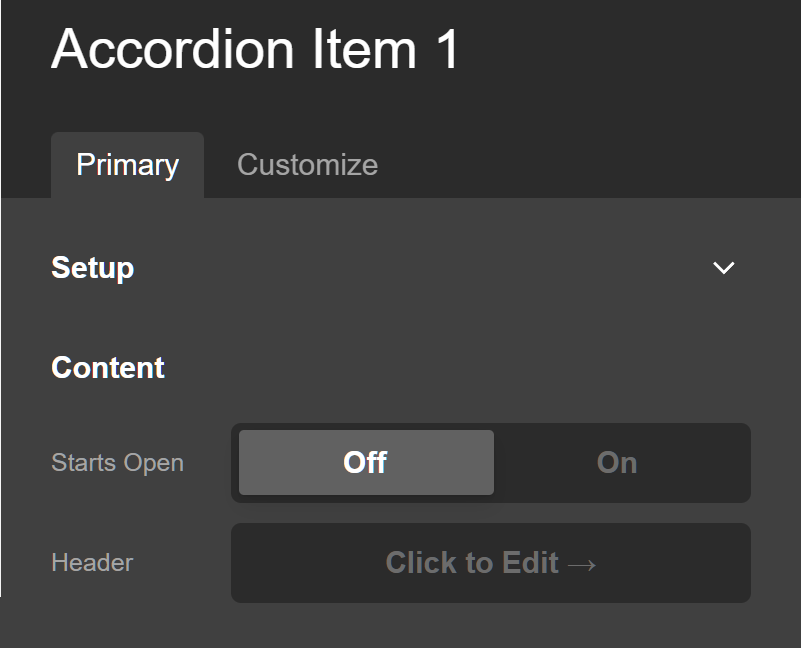

Accordion Content

In this screen, you can choose whether or not the Accordion Item should start "open" (with the content area expanded), and edit the header and main content.

Going back up to our base level Accordion control grouping, the next box you will see is labeled, Setup:

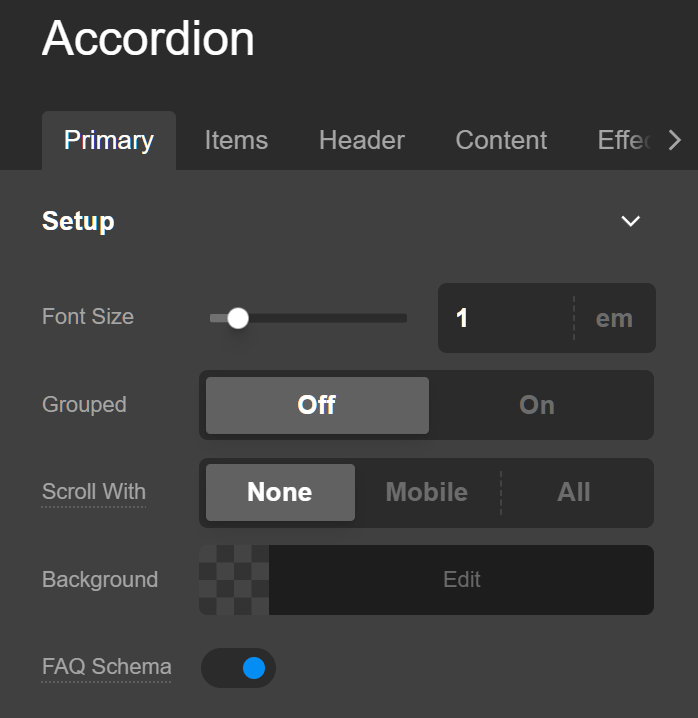

Arccordion Setup

Here you can perform many of the basic functions you see across other v2 elements such as setting a base font size, background color, and width/max width values. One control of note here is the Enable Grouping Toggle, which if enabled only allow one Accordion Item to be open at a time, which can be helpful for certain situations. Selecting this control to be on will also reveal a text input labeled Custom Group. Leaving this input blank by default will only allow one Accordion Item to be open in that Accordion at a time. If you place the same group name into this input across multiple Accordions though, it will only allow one Accordion Item to be open across all of those grouped accordions. For example, if you had 3 different Accordions in use throughout your page and you only wanted one item to ever be open across all of them, you could give each of them a custom group name of "Group 1," which would ensure that this effect took place. Again, this is helpful for certain situations, but not always necessary.

After that, you will find the traditional controls for things such as margin, padding, borders, shadows, et cetera.

Items

The most important set of controls to note for the "Items" control grouping is the Items Setup box:

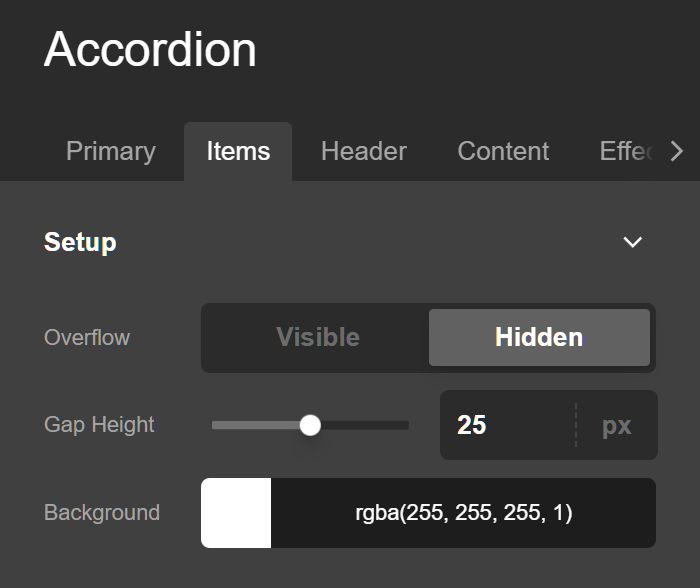

Accordion Item Setup

In addition to being able to specify a background color across all of your Accordion Items (which again, is the container holding the "Header" and "Content" areas), you can choose to disable the default content overflow of the containing element. This is helpful in achieving certain stylistic approaches for your Accordion Items, but keep in mind that this means things like box shadows on the Header or Content area inside your Accordion Items will not be able to flow out of the Accordion Item container.

Additionally, you can also set the Spacing control, which dictates how much spacing should be placed vertically between each Accordion Item. One thing to keep in mind here is that you can also use negative margins if you wish, which can help to create a more tightly "grouped" feeling. For example, if you placed an outer border on each item of 1px, you could experiment with placing a -1px spacing for each item, effectively placing them directly on top of one another and giving them a linked appearance.

After that, you will find the traditional controls for things such as padding, borders, shadows, et cetera.

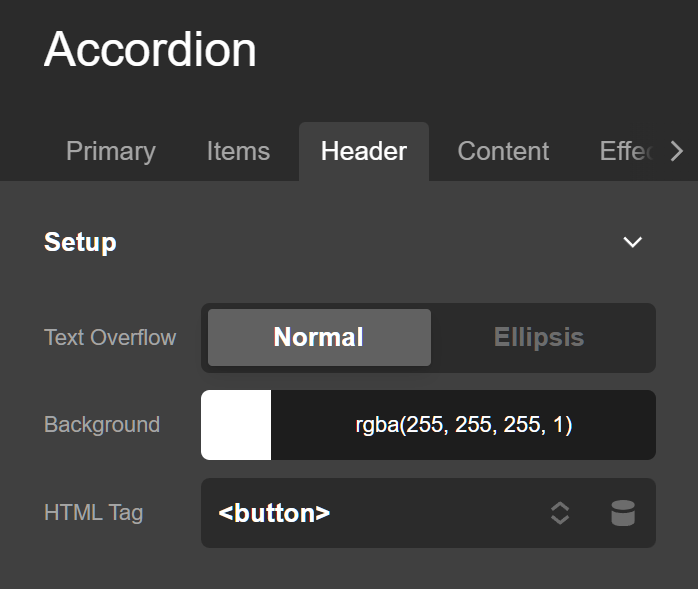

The Setup box for the "Header" control group contains a few notable controls. The first one you will notice is a toggle labeled Overflow:

Accordion Header

If that toggle is enabled, it will ensure that Headers with very long content will utilize a text overflow technique that will represent overflowing text with an ellipsis instead of wrapping, like so:

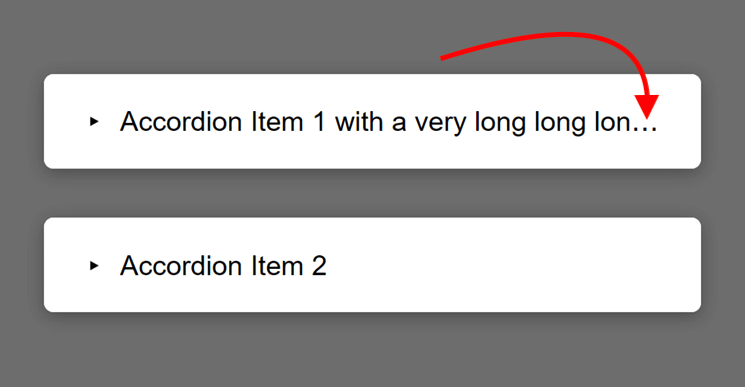

Accordion Example

This is simply a matter of preference as your design might work well with text wrapping to another line and you could leave it off, or you simply might prefer to ensure that all of your Headers remain the same height at all times even as your website sizes down responsively.

Next, we have the indicator control, which if turned on will display a styleable status indicator for each Accordion Item in the Header (as seen by the caret in the screenshot). If you select the Reversed checkbox, it will place that indicator at the far side of the Accordion Item Header.

If you have the Indicator toggle enabled, the next box you'll see for this control grouping will be labeled Header Indicator Setup:

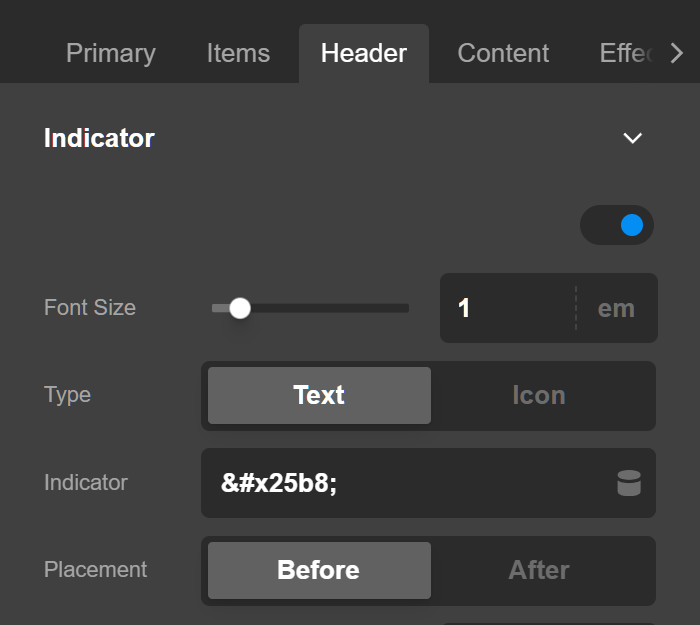

Accordion Header Indicator Setup

Here, you will setup a few basic styles to give you Accordion Item Indicator the styling you want. You can choose between using "Text" or an "Icon" for your indicator (in the screenshot above we're using "Text" with a unicode caret character for our design), as well as specifying the base size for your Indicator. Next, you can specify a height and width if desired, which can be useful depending on what type of setup you're using. After that, you'll see the Start & End Rotation inputs, which is where you will specify a degree rotation for your Indicator for each state of your item (e.g. open and closed). For this example, our item is starting out with no rotation, but when the item is opened, the Indicator is animated to rotate 90deg, pointing downwards. This helps to give slight stylistic flourish, and can be used creatively with indicators such as a plus sign, which can be rotated 45deg to represent an "X." And finally we have the color of the indicator for when the Item is open and closed.

After that, you will find the traditional controls for things such as margin, padding, borders, shadows, text, et cetera.

Content

The Content control grouping is pretty straightforward, including background color as well as all of the traditional margin, padding, border, and shadow controls that you will be accustomed to seeing across all v2 Elements.

Customize

The customize section consists of controls to customize the element if you are into HTML, CSS, and Javascript.

Accordion Customize
  • ID - Use this option to set an HTML ID for the element. The ID should be unique on the page.
  • Class - Use this option to set an HTML Class for the element. You can use the class for your custom CSS code.
  • Element CSS - Use this option to have better control over the element to access the inner tags of the element using $el as the CSS selection. Click here for more detailed information.
  • Hide During Breakpoint - Use this option to hide the element on different device sizes. Click here for more information.
  • Custom Attributes - Use this option to add a custom attributes to the wrapper HTML tag of the element. Such as data-info=123. You can use the option to inject custom information into the element to use on your customization code.
Custom Attributes

Demo

To see a live demo of the Accordion Element click here.

Summary

You now know everything about the Accordion element and how to use it.
