Bug in font scaling using EM

Hi,

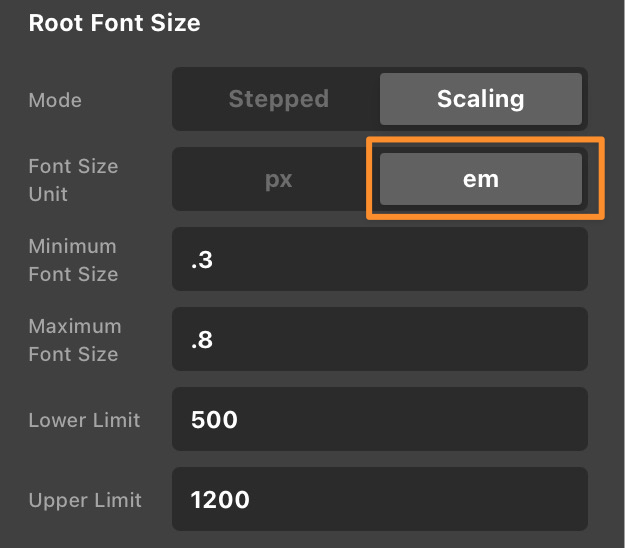

Here’s my font scaling setup,

and here’s the CSS it outputs

@media (min-width: 500em) {
        html {
            font-size: calc(.3em +(.8 - .3) *((100vw - 500em) /(1200 - 500)));
        }
    }

In line 1, the 500em should be 500px and the same within the calc. 100vw-500px

500em is a hugely wide screen and 100vw-500em will always be negative.

This code snippet fixes it:

add_action('wp_head', function () {
  // Read Pro’s Theme Options; fall back to sensible defaults
  $unit = get_option('x_root_font_size_scaling_unit', 'em');      // 'em' or 'px'
  $min  = get_option('x_root_font_size_scaling_min',  '1');       // default 1em
  $max  = get_option('x_root_font_size_scaling_max',  '1.25');    // default 1.25em
  $low  = (int) get_option('x_root_font_size_scaling_lower_limit', 500);  // 375px
  $high = (int) get_option('x_root_font_size_scaling_upper_limit', 1200); // 1440px

  // Guard rails
  if ($high <= $low) { $high = $low + 1; }

  // Convert min/max to px if values are in em
  $min_px = ($unit === 'px') ? (float)$min : (float)$min * 16;
  $max_px = ($unit === 'px') ? (float)$max : (float)$max * 16;

  // Output clean, fluid root font-size using clamp()
  echo '<style id="pro-root-font-fluid">
  html{font-size:clamp('.$min_px.'px,
    calc('.$min_px.'px + ('.($max_px - $min_px).') * ((100vw - '.$low.'px)/('.($high - $low).'))),
    '.$max_px.'px);}
  </style>';
});

Hey Bill,

Thanks for the feedback. I will forward this thread to our developers for them to chime in on your issue.

Cheers.

The Unit control effectively controls if Lower and Upper limit are going to em values. I can tell you this code is pretty old so I doubt I could change it without breaking some sites. What you’re saying makes sense, but what’s probably expected is you use lower limit of say 30em and upper limit at 70em.

DOH! of course, you know it would be nice if the boxes had a label next to them but now I see they’re all EM or PX. When you switch units they remain the same.

I’ve switched to the PX based approach and now it’s working fine.

Sorry. but I did learn something!

1 Like

Hi Bill,

Glad that everything is working now and you learnt a few things here too.

Thanks
